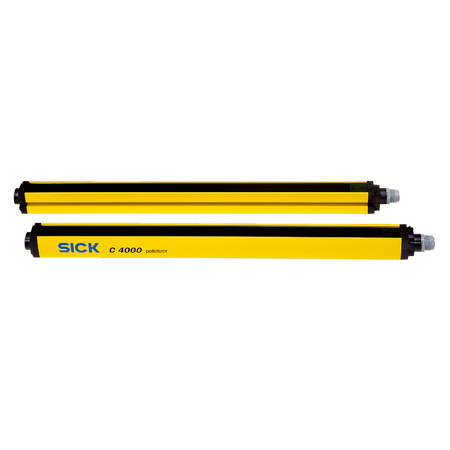

C40S-1803CD010 | Safety light curtains

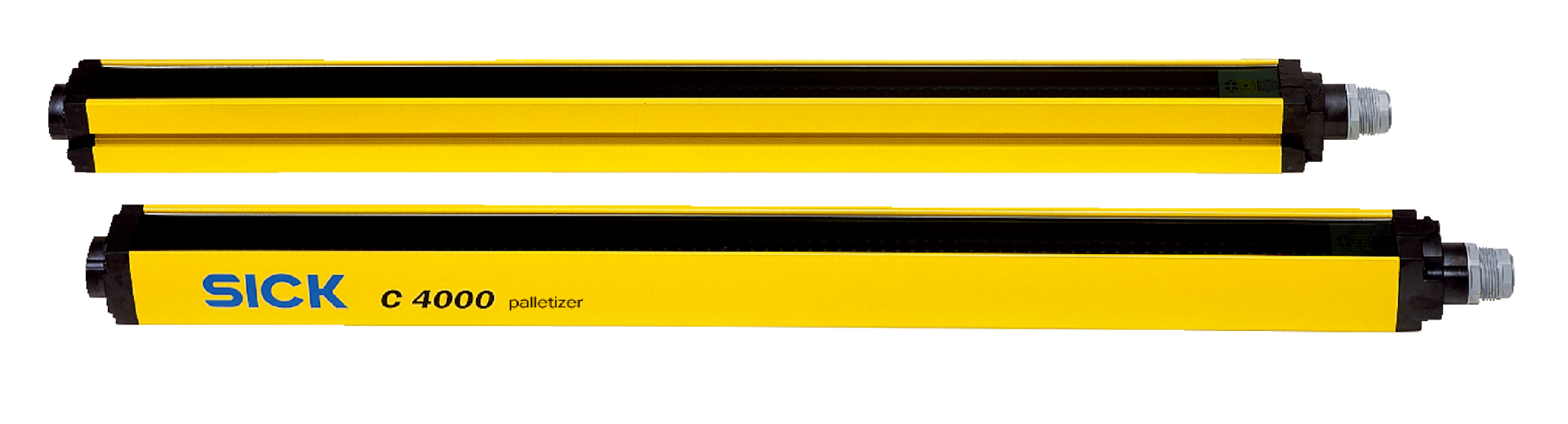

The SICK C40S-1803CD010 Safety Light Curtain is a Type 4 safety device designed for industrial environments, providing advanced protection with a 7 m scanning range and 1800 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1803CD010 | Safety light curtains
Brand: SICK
SKU: 1041908
Alternatively Known As: Safety light curtain, industrial safety sensor, palletizer safety curtain, optical safety barrier
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Resolution: 30 mm
- Scanning Range: 7 m
- Protective Field Height: 1800 mm
- Synchronization: Optical synchronization
- System Connection: Hirschmann male connector M26, 12-pin
- Supply Voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual Ripple: ≤ 10%
- Protection Class: III (IEC 61140)
- Enclosure Rating: IP65 (EN 60529)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Air Humidity: 15% to 95%, non-condensing
- Vibration Resistance: 5 g, 10 Hz to 55 Hz
- Shock Resistance: 10 g, 16 ms
- Wave Length: 850 nm
- Type of Light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 1800mm x 48mm x 40mm
- Weight: 3.68 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level PL e
- Resolution of 30 mm with a scanning range of 7 m
- Protective field height of 1800 mm
- Optical synchronization and beam coding
- Configurable scanning range
- Safe SICK device communication via EFI
- 7-segment display for status indication
- Robust aluminum extruded profile housing
- IP65 rated enclosure for dust and water protection
- Operating temperature range 0 °C to +55 °C
- Shock resistance 10 g, vibration resistance 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Industrial safety applications in normal industrial environments
- Palletizer advanced safety systems
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing promotes long product life and recyclability
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C40S-1803CD010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
