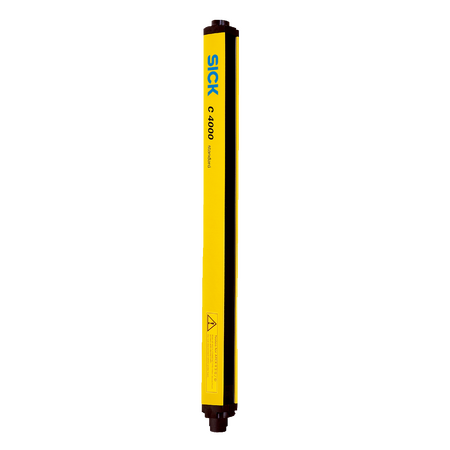

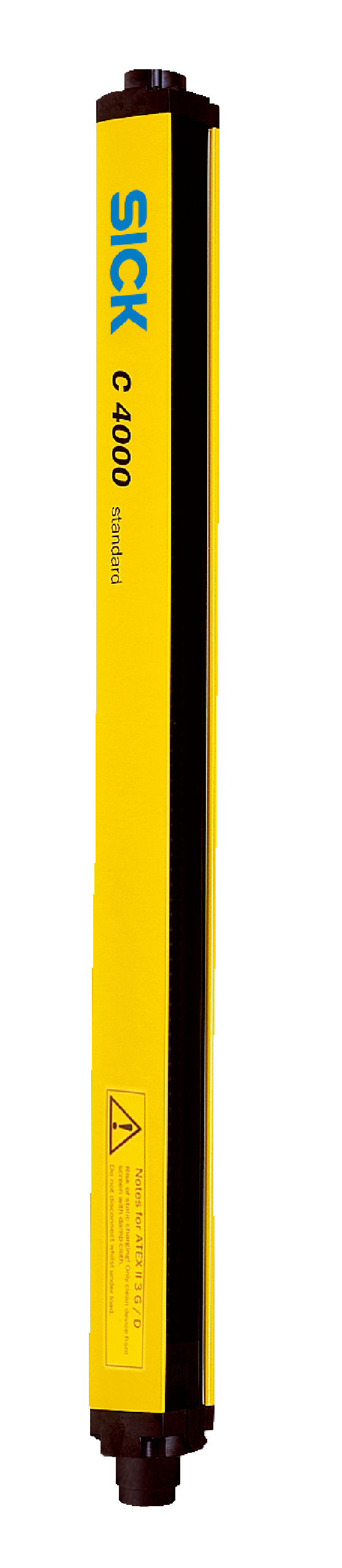

C40S-S005 | Safety light curtains
The SICK C40S-S005 Safety Light Curtain is designed for explosive areas, providing high safety integrity with Type 4 certification, SIL 3 rating, and ATEX approvals. It features a 21 m scanning range and robust IP65 aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-S005 | Safety light curtains
Brand: SICK
SKU: 1024072
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial safety light barrier, explosion-proof light curtain
Technical Specifications
- Application: Explosive areas
- Ex-approvals: ATEX II 3G Ex nA op is IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc
- System part: Sender
- Resolution: 30 mm
- Scanning range: 21 m
- Protective field height: 1,500 mm
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Functions: Protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, reduced resolution, fixed and floating blanking, safe SICK device communication via EFI
- Interfaces: Hirschmann male connector M26 12-pin, female connector M8 4-pin, PC configuration with CDS software
- Electrical data: Protection class III (IEC 61140), supply voltage 24 V DC (19.2-28.8 V), residual ripple ≤ 10%
- Mechanical data: Housing cross-section 48 mm x 40 mm, aluminum extruded profile
- Ambient data: IP65 enclosure, operating temperature 0°C to +55°C, storage temperature -25°C to +70°C, 15%-95% non-condensing humidity, vibration and shock resistant
- Light type: Near-infrared (NIR), wavelength 850 nm
- Dimensions (H x L x W): 40mm x 1500mm x 48mm
- Weight: 3.11 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 certification
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization with 30 mm resolution
- Scanning range up to 21 m with 1,500 mm protective field height
- Configurable scanning range and multiple blanking options
- ATEX approvals for gas and dust explosive atmospheres
- Near-infrared (NIR), invisible light wavelength at 850 nm
- Robust aluminum extruded profile housing with IP65 rating
- Supports safe SICK device communication via EFI
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with safety light curtains and compliance with occupational health and safety standards.
Applications
- Explosive areas requiring high safety standards
- Industrial automation safety systems
- Machine safeguarding in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and environmental hazards
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40S-S005 Safety Light Curtain is available for immediate purchase, ideal for industrial and explosive area safety applications.
