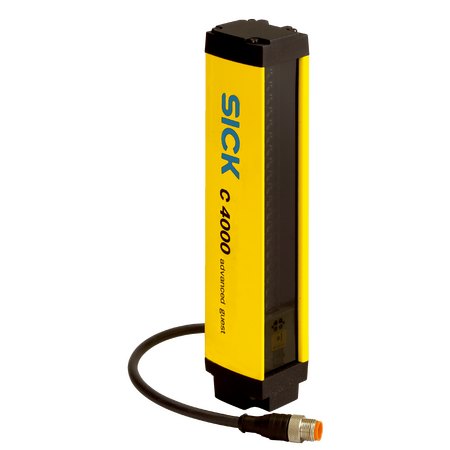

C46E-1601CU400 | Safety light curtains
The SICK C46E-1601CU400 is a Type 4 safety light curtain receiver designed for normal industrial environments, offering high safety integrity and configurable scanning range with robust mechanical and electrical features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C46E-1601CU400 | Safety light curtains
Brand: SICK
SKU: 1040191
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, optical safety barrier
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1650 mm
- Response time: 24 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Cable: Fixed 320 mm with M12 8-pin male connector
- Dimensions (H x L x W): 40mm x 1650mm x 48mm
- Weight: 3.42 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance level PL e (EN ISO 13849)
- 14 mm resolution with 10 m scanning range
- Protective field height of 1650 mm
- Response time of 24 ms
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, reduced resolution, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical wiring to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient 24 V DC operation minimizes power consumption
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C46E-1601CU400 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
