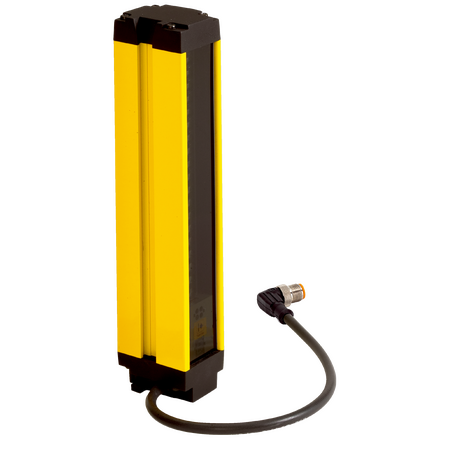

C46S-0101CT400 | Safety light curtains
The SICK C46S-0101CT400 Safety Light Curtain is a Type 4 industrial safety device with SIL 3 certification, designed for normal industrial environments offering high resolution and reliable protective functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C46S-0101CT400 | Safety light curtains
Brand: SICK
SKU: 1028796
Alternatively Known As: Safety light curtain, industrial safety sensor, protective light barrier, SICK safety sensor
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 150 mm
- Synchronization: Optical
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFH D: 43 * 10^-9
- Mission time: 20 years (EN ISO 13849)
- System connection: Fixed cable 320 mm with M12, 8-pin male connector
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 150mm x 40mm x 48mm
- Weight: 0.54 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- 14 mm resolution with 10 m scanning range
- Protective field height of 150 mm
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
- Fixed connection cable with M12, 8-pin male connector
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V to 28.8 V)
- Enclosure rating IP65 (EN 60529)
- Operating temperature 0 °C to +55 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical installation practices.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Durable aluminum housing promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C46S-0101CT400 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance with safety standards.
