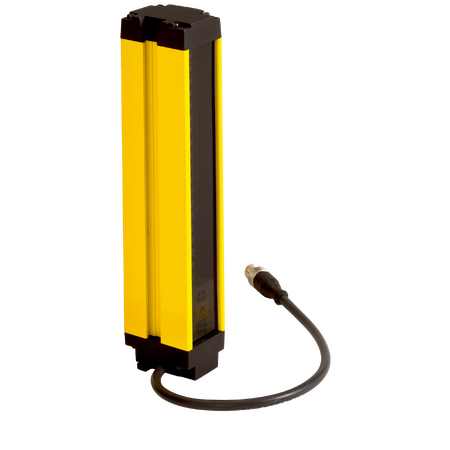

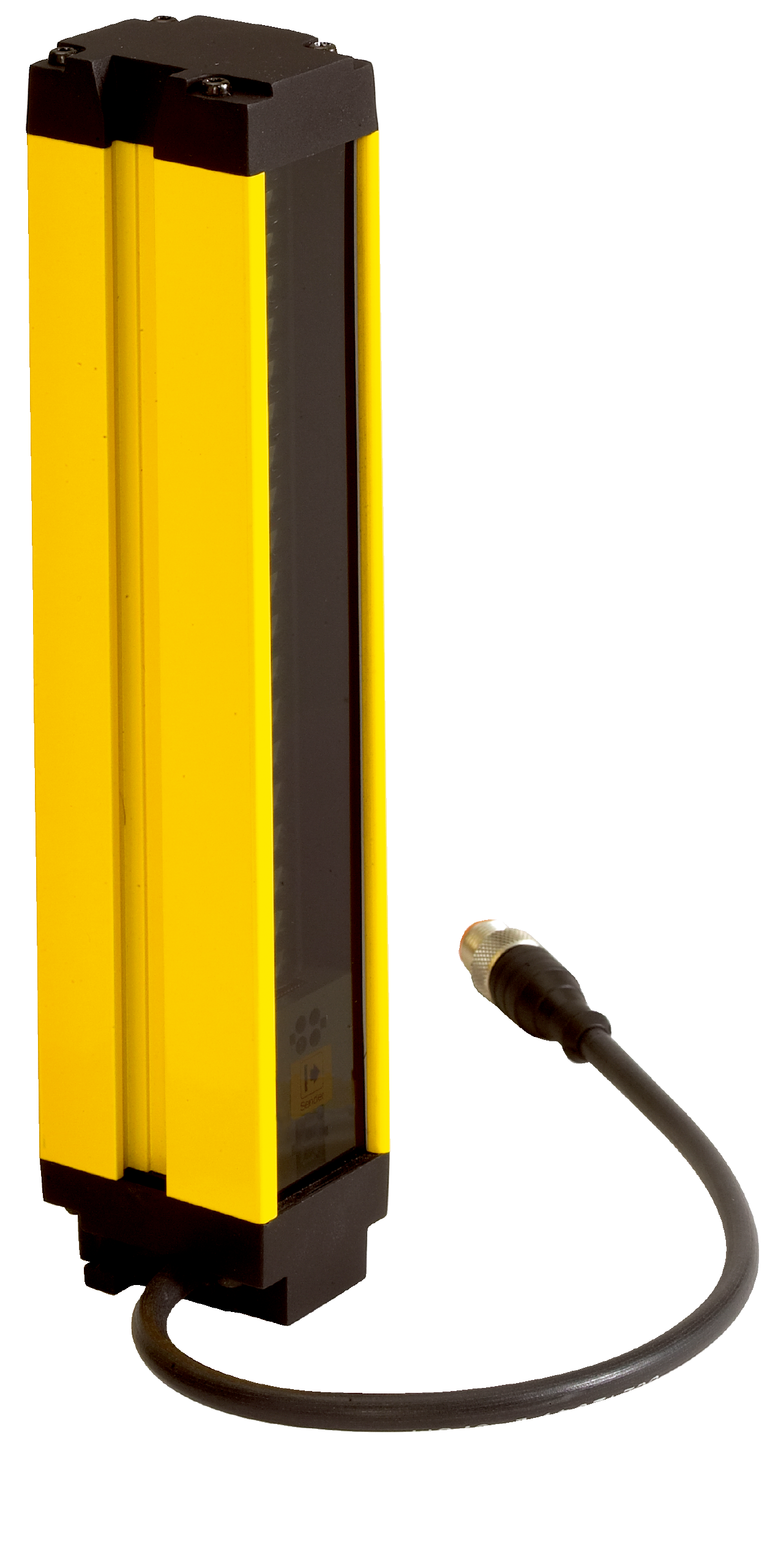

C46S-0603CT500 | Safety light curtains
The SICK C46S-0603CT500 Safety Light Curtain is a Type 4 safety device designed for normal industrial environments, offering high safety integrity with SIL 3 and Category 4 compliance, featuring a 21 m scanning range and 600 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C46S-0603CT500 | Safety light curtains
Brand: SICK
SKU: 1028907
Alternatively Known As: Industrial safety light curtain, Type 4 safety sensor, SICK safety curtain, optical safety barrier
Technical Specifications
- Dimensions (H x L x W): 600mm x 40mm x 48mm
- Weight: 1.39 kg
Key Features
- Type 4 (IEC 61496-1) safety light curtain
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance level PL e
- Resolution of 30 mm and scanning range of 21 m
- Protective field height of 600 mm
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
- Fixed connection cable 320 mm with male M12, 8-pin connector
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V ... 28.8 V)
- Residual ripple ≤ 10%
- Housing made of aluminum extruded profile
- Enclosure rating IP65 (EN 60529)
- Operating temperature 0 °C to +55 °C
- Storage temperature -25 °C to +70 °C
- Vibration resistance 5 g, 10 Hz to 55 Hz
- Shock resistance 10 g, 16 ms
- Wavelength 850 nm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable aluminum housing for long product life reducing waste
- Energy-efficient operation with low residual ripple
- IP65 rating ensures protection against dust and water, enhancing longevity
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C46S-0603CT500 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
