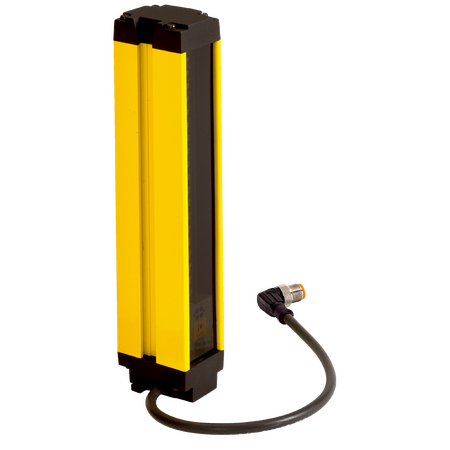

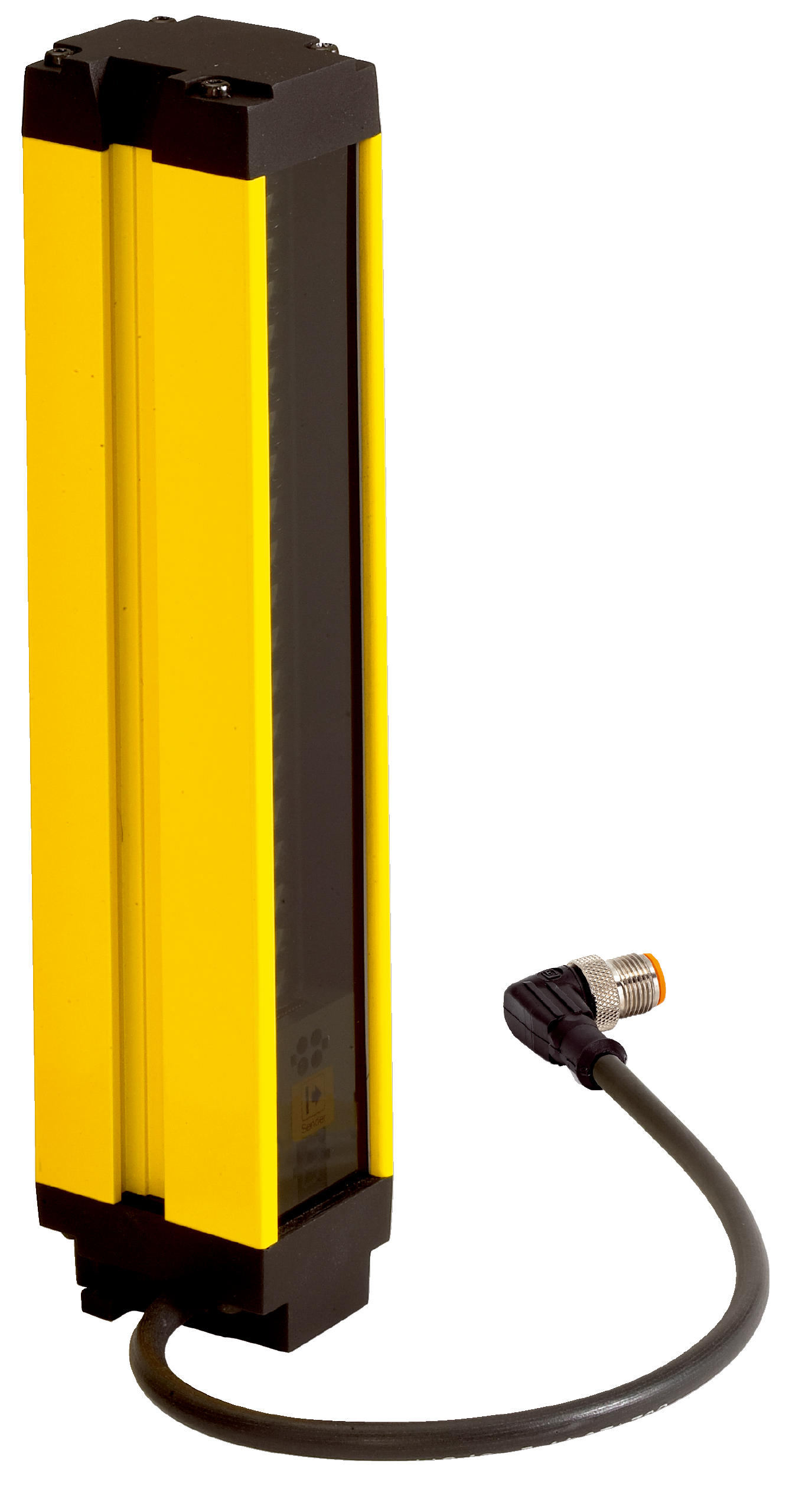

C46S-1601CT400 | Safety light curtains
The SICK C46S-1601CT400 Safety Light Curtain is a Type 4 safety device designed for normal industrial environments, providing high safety integrity and reliable protective functions with a scanning range of 10 meters and a protective field height of 1650 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C46S-1601CT400 | Safety light curtains
Brand: SICK
SKU: 1040182
Alternatively Known As: Safety light curtain, industrial safety curtain, SICK safety sensor, optical safety barrier
Technical Specifications
- System part: Sender
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1650 mm
- Synchronization: Optical
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFH D (mean probability of a dangerous failure per hour): 43 * 10^-9
- Mission time: 20 years (EN ISO 13849)
- System connection: Fixed cable 320 mm with male M12 8-pin connector
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 40mm x 1650mm x 48mm
- Weight: 3.39 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization
- Protective field height of 1650 mm
- Scanning range up to 10 m
- Resolution of 14 mm
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass and operating mode switching in combination with UE402
- 7-segment display for status indication
- IP65 rated enclosure for dust and water protection
- Operating temperature range 0 °C to +55 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical installation practices to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Energy-efficient operation with low power consumption
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK C46S-1601CT400 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
