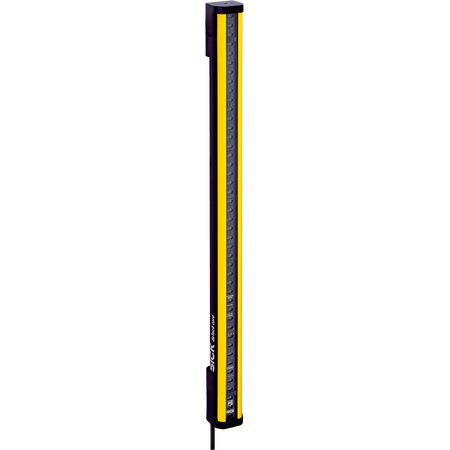

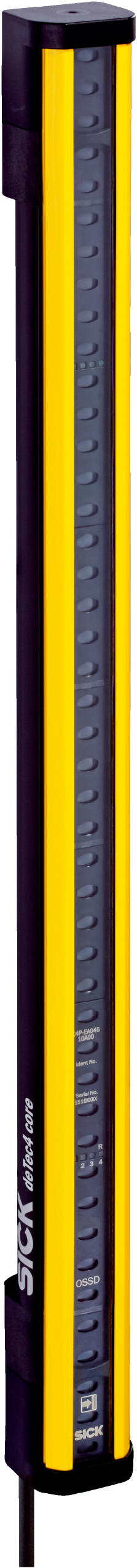

C4C-EA12030A10000 | Safety light curtains
The SICK C4C-EA12030A10000 safety light curtain receiver offers high-performance industrial safety with Type 4 protection, SIL 3 and PL e certification, ideal for safeguarding machinery in normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EA12030A10000 | Safety light curtains
Brand: SICK
SKU: 1211502
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK light curtain, deTec4 Core safety sensor
Technical Specifications
- Product version: deTec4 Core
- System part: Receiver compatible with sender 1211501
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,200 mm
- Response time: 12 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- System connection: Plug, M12, 5-pin with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.21 W typical
- Output: 2 PNP semiconductors, short-circuit protected
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1200mm x 30mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 1,200 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Response time of 12 ms for fast detection
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High ingress protection rating of IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring protective light curtains
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.21 W reduces energy usage
- Complies with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EA12030A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications in normal industrial environments.
