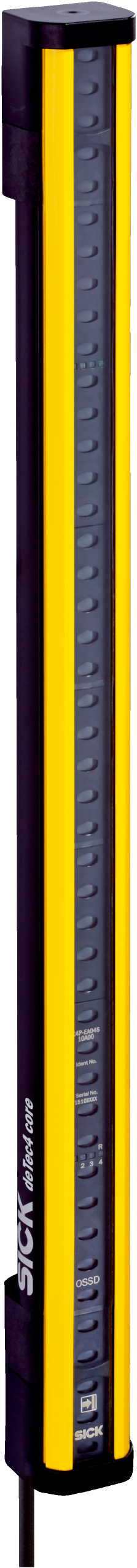

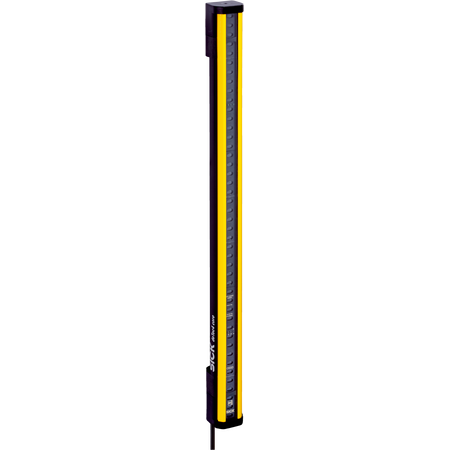

C4C-EA21010A10000 | Safety light curtains
The SICK C4C-EA21010A10000 safety light curtain receiver deTec4 Core offers high-performance industrial safety with Type 4 protection, 14 mm resolution, and a 10 m scanning range, ideal for safeguarding machinery and personnel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EA21010A10000 | Safety light curtains
Brand: SICK
SKU: 1211491
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, machine safety sensor, optical safety curtain
Technical Specifications
- Product version: deTec4 Core
- System part: Receiver compatible with sender model 1211490
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 2100 mm
- Response time: 22 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- System connection: M12, 5-pin plug with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 4.8 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Enclosure rating: IP65 and IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 2100mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain receiver with optical synchronization
- Resolution of 14 mm and scanning range up to 10 m
- Protective field height of 2100 mm with no blind zones
- Response time of 22 ms for fast detection
- Automatic calibration of protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High ingress protection rating IP65 and IP67
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Low power consumption of 4.8 W reduces energy usage
- Complies with RoHS directives limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EA21010A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
