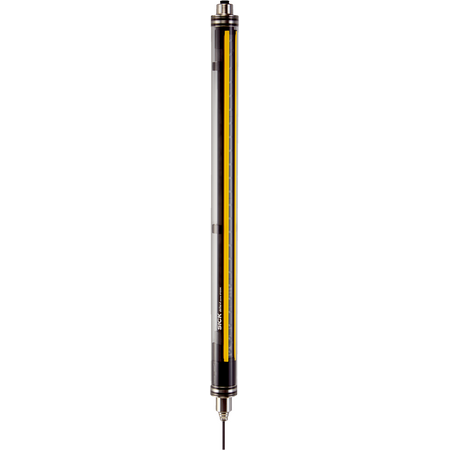

C4C-EB12030A10000 | Safety light curtains
The SICK C4C-EB12030A10000 safety light curtain receiver deTec4 Core IP69K is designed for areas with special hygiene requirements, offering high safety integrity with Type 4 protection and robust IP69K housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EB12030A10000 | Safety light curtains
Brand: SICK
SKU: 1219565
Alternatively Known As: Safety light curtain receiver, deTec4 Core safety sensor, IP69K safety light barrier, industrial safety light curtain
Technical Specifications
- Product version: deTec4 Core IP69K
- System part: Receiver
- Compatible sender: 1219564
- Resolution: 30 mm
- Scanning range: 12.5 m
- Protective field height: 1,200 mm
- Response time: 12 ms
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: 15 m PUR halogen-free cable, 5-wire, 0.34 mm² conductor
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 2.21 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current per OSSD: ≤ 300 mA
- Material: PMMA protective housing, stainless steel 1.4404 end caps and cable glands with silicone seal, PA 6 compensating element
- Enclosure rating: IP65, IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1200mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Resolution of 30 mm with a scanning range of 12.5 m
- Protective field height of 1,200 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- IP69K rated protective housing suitable for harsh environments
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Areas with special hygiene requirements
- Industrial safety applications requiring Type 4 safety light curtains
- Machine safeguarding and personnel protection in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements in harsh environments
- Energy-efficient operation with low power consumption (2.21 W typical)
- Halogen-free cable materials support environmentally safer disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C4C-EB12030A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications requiring high hygiene standards and robust protection.
