C4C-EB15010A10000 | Safety light curtains

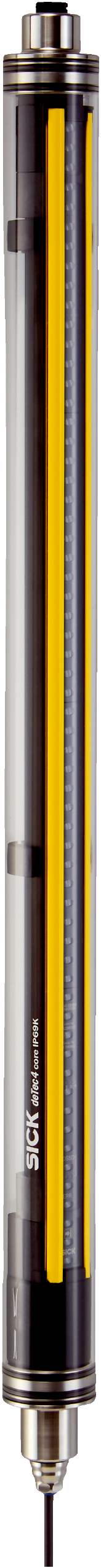

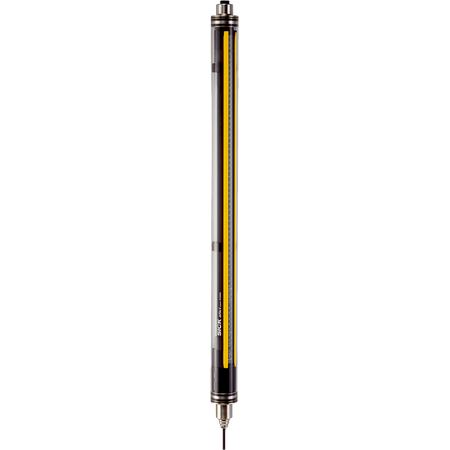

The SICK C4C-EB15010A10000 safety light curtain receiver deTec4 Core IP69K is designed for areas with special hygiene requirements, offering high safety performance with IP69K protection and robust stainless steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EB15010A10000 | Safety light curtains
Brand: SICK
SKU: 1219547
Alternatively Known As: Safety light curtain receiver, deTec4 Core safety sensor, IP69K safety light barrier
Technical Specifications
- Product version: deTec4 Core IP69K
- System part: Receiver compatible with sender 1219546
- Resolution: 14 mm
- Scanning range: 8.5 m
- Protective field height: 1,500 mm
- Response time: 18 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD off
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 3.84 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Cable: 15 m PUR halogen-free, 5-wire, 5 mm diameter
- Protection class: III (IEC 61140)
- Enclosure rating: IP65, IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1500mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain receiver with IP69K protective housing
- Resolution of 14 mm and scanning range of 8.5 m
- Protective field height of 1,500 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Response time of 18 ms
- LED display elements for status indication
- Robust stainless steel end caps and cable glands with silicone seal
- High safety integrity level SIL 3 and performance level PL e
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Areas with special hygiene requirements
- Industrial safety monitoring
- Machine safeguarding in hygienic environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and IP69K rating ensure long product life and resistance to harsh cleaning processes
- Halogen-free PUR cable reduces environmental impact
- Energy-efficient operation with low power consumption of 3.84 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EB15010A10000 safety light curtain receiver is available for immediate purchase, ideal for hygienic industrial safety applications.
