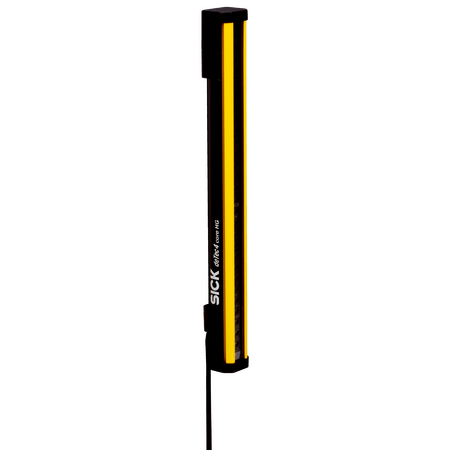

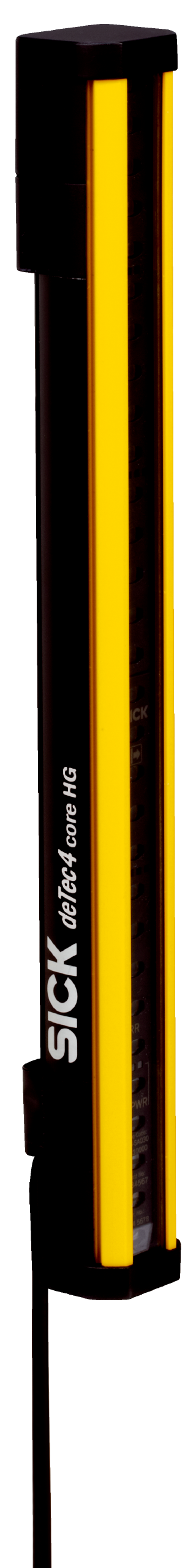

C4C-EG16530A10000 | Safety light curtains
The SICK C4C-EG16530A10000 is a Type 4 safety light curtain receiver designed for industrial safety applications, offering a 1,650 mm protective field height, 30 mm resolution, and robust IP65/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EG16530A10000 | Safety light curtains
Brand: SICK
SKU: 1220407
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, machine safety sensor, optical safety barrier
Technical Specifications
- Product version: deTec4 Core HG
- System part: Receiver
- Compatible sender: 1220396
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,650 mm
- Response time: 13 ms
- No blind zones: Yes
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible use: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10 %
- Power consumption typical: 2.5 W (DC)
- Output signal switching devices (OSSDs): 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65/IP67 (IEC 60529)
- Ambient operating temperature: –30 °C ... +55 °C
- Storage temperature: –30 °C ... +70 °C
- Air humidity: 15 % ... 95 %, Non-condensing
- Vibration resistance: 5 … 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Class: 3M4 (IEC TR 60721-4-3)
- Dimensions (H x L x W): 1650mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain receiver with 1,650 mm protective field height
- Resolution of 30 mm and scanning range up to 15 m
- Optical synchronization with compatible sender 1220396
- No blind zones ensuring full protective coverage
- Automatic calibration of protective field width
- LED display elements for status indication
- Short response time of 13 ms
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High ingress protection rating IP65/IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding requiring optical synchronization and no blind zones
- Safety monitoring in manufacturing and automation environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Low power consumption of 2.5 W contributes to energy efficiency
- Complies with multiple international environmental and safety standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK C4C-EG16530A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
