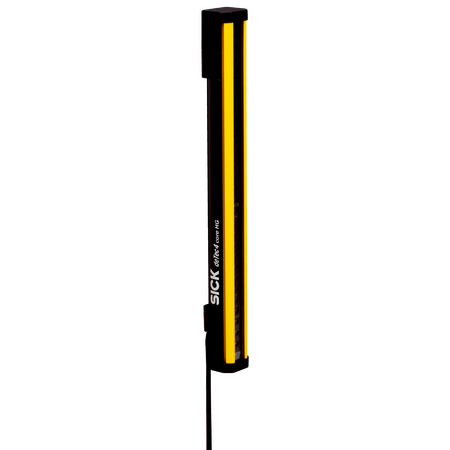

C4C-EG18010A10000 | Safety light curtains
The SICK C4C-EG18010A10000 safety light curtain receiver offers high-performance Type 4 protection with a 14 mm resolution and 10 m scanning range, ideal for safeguarding industrial areas with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EG18010A10000 | Safety light curtains
Brand: SICK
SKU: 1220386
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, deTec4 Core HG receiver
Technical Specifications
- Product version: deTec4 Core HG
- System part: Receiver compatible with sender 1220375
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,800 mm
- Response time: 20 ms
- No blind zones: Yes
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Power consumption typical: 4.32 W
- Output signal: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1800mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- Resolution of 14 mm and scanning range up to 10 m
- Protective field height of 1,800 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Response time of 20 ms for fast detection
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High ingress protection rating IP65 and IP67
- Wide operating temperature range from -30 °C to +55 °C
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation by qualified safety and electrical professionals is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding and personnel protection
- Automation and manufacturing environments requiring high safety standards
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and environmental hazards
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EG18010A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliability.
