C4C-EG21030A10000 | Safety light curtains

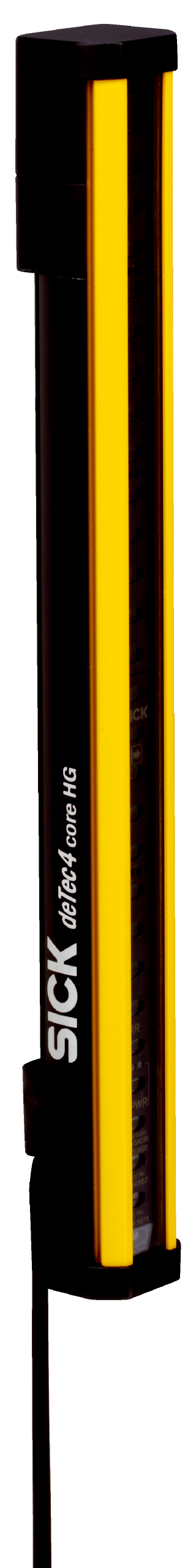

The SICK C4C-EG21030A10000 Safety Light Curtain Receiver offers high-performance industrial safety with Type 4 protection, suitable for harsh environments and areas using coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EG21030A10000 | Safety light curtains
Brand: SICK
SKU: 1221105
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, deTec4 Core HG receiver
Technical Specifications
- Product version: deTec4 Core HG
- System part: Receiver compatible with sender model 1221104
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 2100 mm
- Response time: 14 ms
- No blind zones
- Synchronization: Optical
- System connection: Plug, M12, 5-pin with 150 mm cable length and 4.3 mm diameter
- Cable bend radius: Stationary > 12x cable diameter, Flexible > 15x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 2.78 W
- Output signal: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 2100mm x 40mm x 50mm
- Weight: 3.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity
- Resolution of 30 mm and scanning range up to 15 m
- Protective field height of 2100 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- IP65 and IP67 rated enclosure for harsh environments
- LED display elements for status indication
- Short response time of 14 ms
Professional Installation Requirements
- Installation by qualified safety and electrical professionals is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding and personnel protection
- Automation and manufacturing environments requiring high safety standards
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption (2.78 W typical)
- Supports safer industrial environments reducing accident-related environmental impacts
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK C4C-EG21030A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
