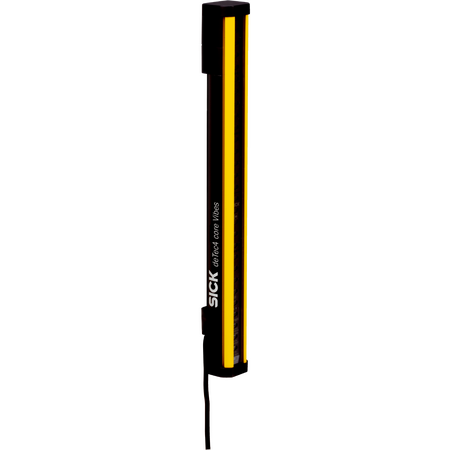

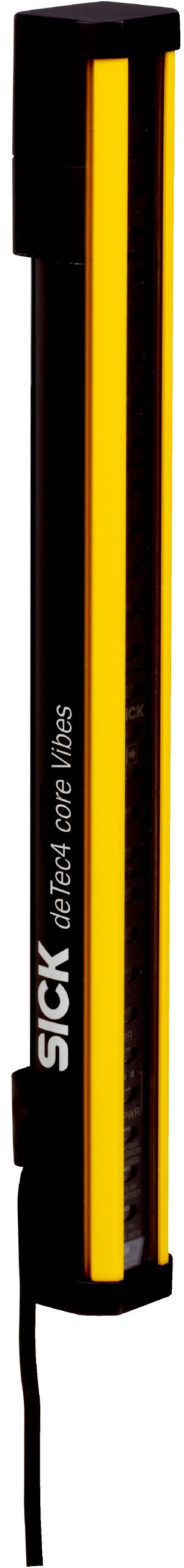

C4C-EV12030B10000 | Safety light curtains
The SICK C4C-EV12030B10000 is a Type 4 safety light curtain receiver designed for machines with strong shock or vibration loads, offering high safety integrity and reliable protective operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EV12030B10000 | Safety light curtains
Brand: SICK
SKU: 1107659
Alternatively Known As: Safety light curtain receiver, Safety light barrier, Machine safety sensor, Optical safety curtain
Technical Specifications
- Product version: deTec4 Core Vibes
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 3.8 m
- Protective field height: 1,200 mm
- Response time: 12 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.21 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1200mm x 30mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Resolution of 30 mm with a scanning range of 3.8 m
- Protective field height of 1,200 mm
- Response time of 12 ms with no blind zones
- Optical synchronization for reliable operation
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
- High vibration and shock resistance suitable for harsh environments
- Enclosure rating IP65 and IP67 for dust and water protection
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure compliance and optimal performance.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental hazards
- Durable aluminum housing extends product life reducing waste
- Low power consumption of 2.21 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EV12030B10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial machine safety applications requiring high reliability under shock and vibration.
