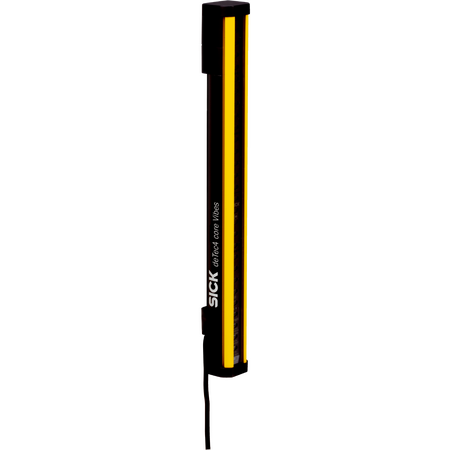

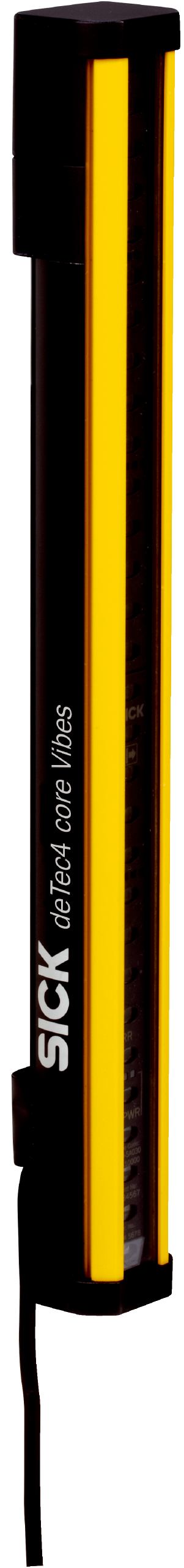

C4C-EV18030B10000 | Safety light curtains
The SICK C4C-EV18030B10000 deTec4 Core Vibes safety light curtain receiver is designed for machines with strong shock or vibration loads, providing high safety integrity with Type 4 classification and SIL 3 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EV18030B10000 | Safety light curtains
Brand: SICK
SKU: 1108493
Alternatively Known As: Safety light curtain receiver, deTec4 Core Vibes light curtain, industrial safety light curtain
Technical Specifications
- Product version: deTec4 Core Vibes
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 3.8 m
- Protective field height: 1,800 mm
- Response time: 13 ms
- No blind zones: Yes
- Synchronization: Optical synchronization
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 2.59 W
- Output type: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Class: 3M4 (IEC TR 60721-4-3)
- Dimensions (H x L x W): 1800mm x 30mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Resolution of 30 mm with a scanning range of 3.8 m
- Protective field height of 1,800 mm
- Response time of 13 ms with no blind zones
- Optical synchronization for reliable operation
- LED display elements for status indication
- Housing made of aluminum extruded profile
- IP65 and IP67 rated enclosure for robust protection
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure compliance and proper operation.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 2.59 W reduces energy usage
- Long mission time of 20 years minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4C-EV18030B10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial machinery safety applications requiring high shock and vibration resistance.
