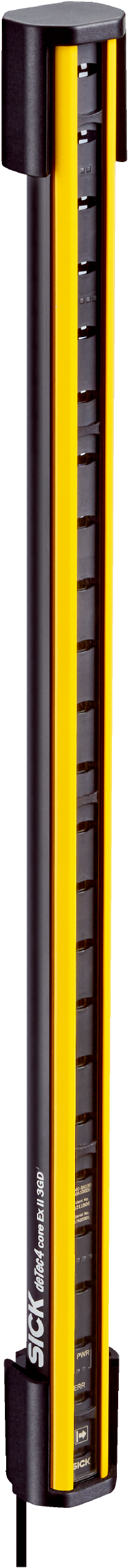

C4C-EX03030A10000 | Safety light curtains
The SICK C4C-EX03030A10000 safety light curtain is designed for explosion hazardous areas, providing reliable Type 4 safety protection with ATEX certification and advanced features for industrial safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EX03030A10000 | Safety light curtains
Brand: SICK
SKU: 1220352
Alternatively Known As: Explosion Proof Safety Light Curtain, ATEX Safety Light Barrier, Industrial Safety Curtain for Hazardous Areas
Technical Specifications
- Product version: deTec4 Core Ex II 3GD
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- System part: Receiver
- Compatible sender: 1220339
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 300 mm
- Response time: 10 ms
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Power consumption: 1.63 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 300mm x 50mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- ATEX approved for gas and dust explosive atmospheres
- 30 mm resolution with 15 m scanning range and 300 mm protective field height
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High ingress protection rating IP65 and IP67
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with explosion protection standards and safety light curtain systems.
Applications
- Industrial safety in explosive environments
- Machine safeguarding in hazardous zones
- Automation safety systems requiring explosion protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and environmental hazards
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4C-EX03030A10000 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
