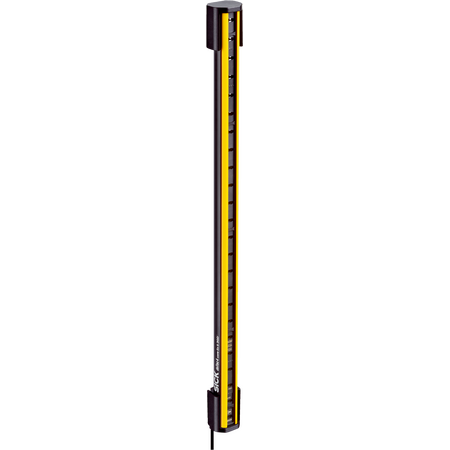

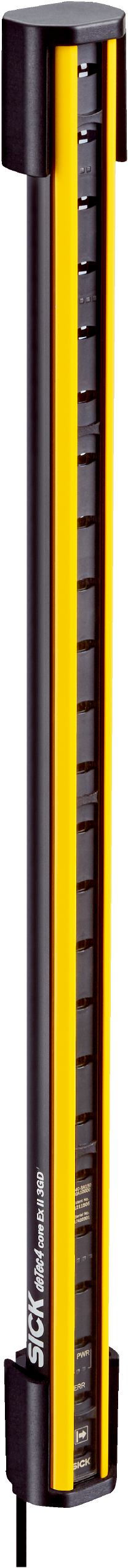

C4C-EX13530A10000 | Safety light curtains
The SICK C4C-EX13530A10000 safety light curtain is designed for explosion hazardous areas, providing reliable Type 4 safety protection with ATEX and IECEx certifications, ideal for industrial machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EX13530A10000 | Safety light curtains
Brand: SICK
SKU: 1220359
Alternatively Known As: Explosion Proof Safety Light Curtain, deTec4 Core Ex II Safety Curtain, Industrial Safety Light Barrier
Technical Specifications
- Product version: deTec4 Core Ex II 3GD
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- System part: Receiver compatible with sender 1220346
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,350 mm
- Response time: 12 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Power consumption: 2.3 W DC
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Protection class: III (IEC 61140)
- Operating temperature: 0°C to +55°C
- Storage temperature: -30°C to +70°C
- Enclosure rating: IP65/IP67
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- Suitable for explosive areas with ATEX and IECEx approvals
- Resolution of 30 mm and scanning range up to 15 m
- Protective field height of 1,350 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Response time of 12 ms for fast detection
- Robust aluminum extruded profile housing with IP65/IP67 rating
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with explosion protection standards and electrical safety regulations.
Applications
- Industrial safety in explosive areas
- Machine safeguarding in hazardous environments
- Automation safety systems requiring explosion protection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and environmental hazards
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK C4C-EX13530A10000 safety light curtain is available for immediate purchase, ideal for industrial applications in explosive environments requiring high safety integrity.
