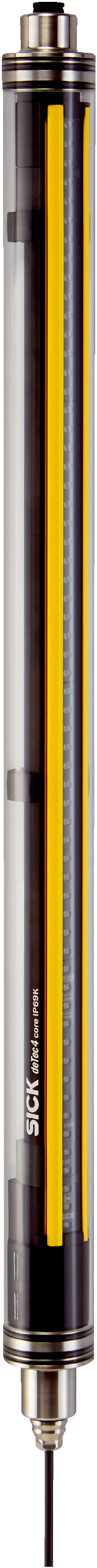

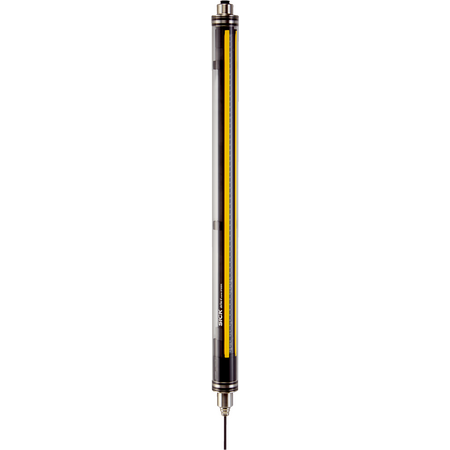

C4C-SB16510A10000 | Safety light curtains
The SICK C4C-SB16510A10000 is a Type 4 safety light curtain sender designed for areas with special hygiene requirements, featuring IP69K protection and advanced safety certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SB16510A10000 | Safety light curtains
Brand: SICK
SKU: 1219548
Alternatively Known As: Safety light curtain sender, deTec4 Core IP69K sender, industrial safety light curtain
Technical Specifications
- Product version: deTec4 Core IP69K
- Resolution: 14 mm
- Scanning range: 8.5 m
- Protective field height: 1650 mm
- Synchronization: Optical
- System connection: 15 m PUR halogen-free cable, 5-wire, 0.34 mm² conductor cross section
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 2.04 W
- Enclosure rating: IP65, IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Material: PMMA protective housing, stainless steel 1.4404 end caps and cable glands with silicone seal, PA 6 compensating element
- Dimensions (H x L x W): 1650mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (ISO 13849-1)
- No blind zones with optical synchronization
- Automatic calibration of the protective field width
- IP69K protective housing suitable for harsh environments
- LED display elements for status indication
- Near-infrared (NIR), invisible light wavelength of 850 nm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Areas with special hygiene requirements
- Industrial safety applications requiring Type 4 safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements
- Halogen-free PUR cable material minimizes environmental impact
- Energy-efficient 24 V DC operation reduces power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-SB16510A10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications in hygienic environments.
