C4C-SG03030A10000 | Safety light curtains

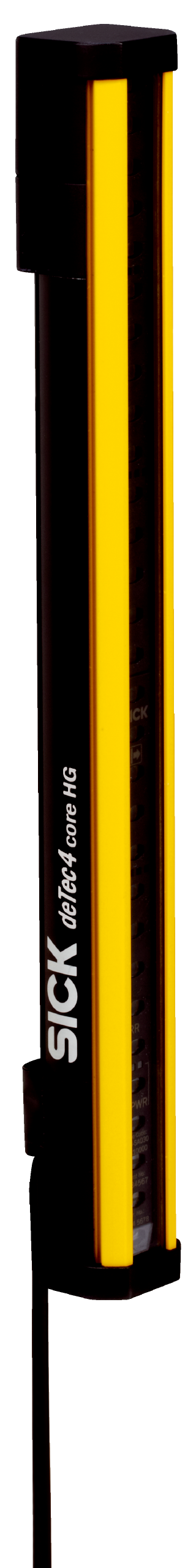

The SICK C4C-SG03030A10000 Safety Light Curtain Sender offers high-performance industrial safety with Type 4 protection, suitable for harsh environments and applications involving coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SG03030A10000 | Safety light curtains
Brand: SICK
SKU: 1220387
Alternatively Known As: Safety light curtain sender, industrial safety light curtain, SICK safety sensor, Type 4 light curtain
Technical Specifications
- Product version: deTec4 Core HG
- System part: Sender
- Compatible receiver: 1220398
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 300 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10 %
- Power consumption typical: 0.82 W
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Light wavelength: 850 nm
- Light type: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 300mm x 150mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e certification
- 30 mm resolution with 15 m scanning range
- Protective field height of 300 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- IP65 and IP67 rated enclosure for harsh environments
- LED display elements for status indication
- Operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance compliant with EN standards
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliance with occupational health and safety standards.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding requiring Type 4 safety light curtains
- Automation systems needing high safety integrity level devices
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption (0.82 W typical)
- Supports safer industrial environments reducing accident-related environmental impacts
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-SG03030A10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliability.
