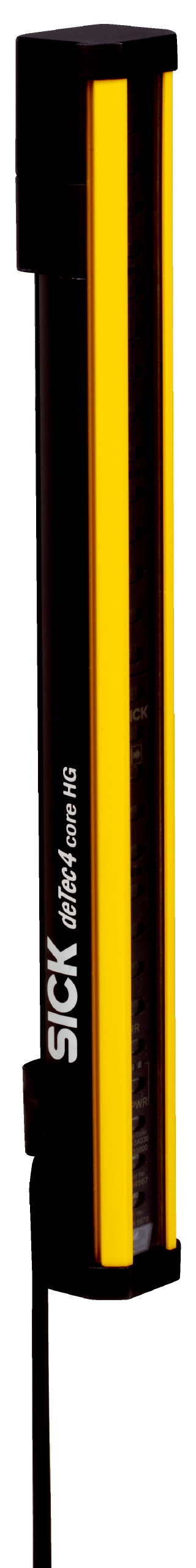

C4C-SG06030A10000 | Safety light curtains
The SICK C4C-SG06030A10000 Safety Light Curtain Sender offers high-performance Type 4 safety protection with SIL 3 and PL e certification, ideal for industrial environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SG06030A10000 | Safety light curtains
Brand: SICK
SKU: 1220389
Alternatively Known As: Safety light curtain sender, Safety light barrier, Industrial safety curtain, Optical safety sensor
Technical Specifications
- Product version: deTec4 Core HG
- System part: Sender
- Compatible receiver: 1220400
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 600 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10 %
- Power consumption typical: 0.91 W
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 600mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 and Performance Level PL e (ISO 13849-1)
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 600 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- LED display elements for status indication
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation by qualified safety and electrical professionals is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding requiring Type 4 safety light curtains
- Automation systems needing optical synchronization and high resolution detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption at 0.91 W typical
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4C-SG06030A10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance.
