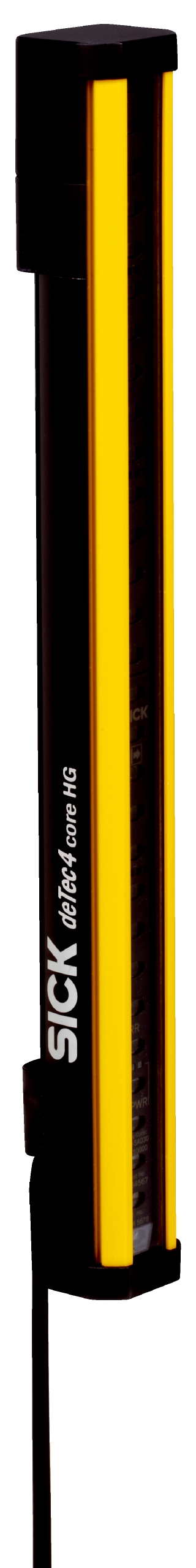

C4C-SG18030A10000 | Safety light curtains
The SICK C4C-SG18030A10000 Safety Light Curtain Sender offers high-performance Type 4 safety protection with SIL 3 and PL e certification, ideal for safeguarding industrial areas exposed to coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SG18030A10000 | Safety light curtains
Brand: SICK
SKU: 1220397
Alternatively Known As: Safety light curtain sender, Safety light barrier, Industrial safety sensor, Optical safety curtain
Technical Specifications
- Product version: deTec4 Core HG
- System part: Sender
- Compatible receiver: 1220408
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1800 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.3 W
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Wavelength: 850 nm
- Dimensions (H x L x W): 1800mm x 40mm x 50mm
- Weight: 3.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Protective field height of 1800 mm with 30 mm resolution
- Scanning range up to 15 meters with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High protection rating IP65 and IP67 for harsh environments
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding requiring optical synchronization and no blind zones
- Safety monitoring in manufacturing and automation environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption (1.3 W typical)
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-SG18030A10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance.
