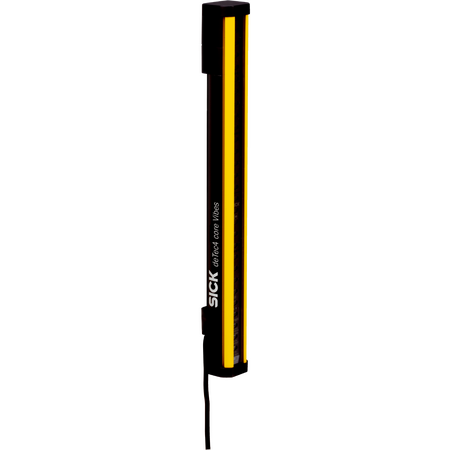

C4C-SV10530C10000 | Safety light curtains
The SICK C4C-SV10530C10000 deTec4 Core Vibes safety light curtain sender offers high-performance protection for machines exposed to strong shock and vibration, featuring Type 4 safety, SIL 3 integrity, and robust IP65/IP67 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SV10530C10000 | Safety light curtains
Brand: SICK
SKU: 1107656
Alternatively Known As: Safety light curtain sender, machine safety light curtain, industrial safety sensor, deTec4 Core Vibes light curtain
Technical Specifications
- Product version: deTec4 Core Vibes
- Application: Machines with strong shock or vibration loads
- System part: Sender
- Resolution: 30 mm
- Scanning range: 6 m
- Protective field height: 1,050 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10 %
- Power consumption typical: 1.06 W (DC)
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65, IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Wavelength: 850 nm
- Dimensions (H x L x W): 1050mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- High safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (ISO 13849-1)
- Resolution of 30 mm with a scanning range of 6 m
- Protective field height of 1,050 mm with no blind zones
- Optical synchronization for reliable operation
- Robust aluminum extruded profile housing
- LED display elements for status indication
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
- Wide ambient operating temperature range from -30 °C to +55 °C
- Ingress protection rating IP65 and IP67
Professional Installation Requirements
- Installation by qualified personnel trained in safety light curtain systems is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Machine safety applications with strong shock or vibration loads
- Industrial automation requiring high safety integrity
- Protection of personnel around hazardous machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Low power consumption of approximately 1.06 W reduces energy usage
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4C-SV10530C10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial machine safety applications requiring high reliability under shock and vibration conditions.
