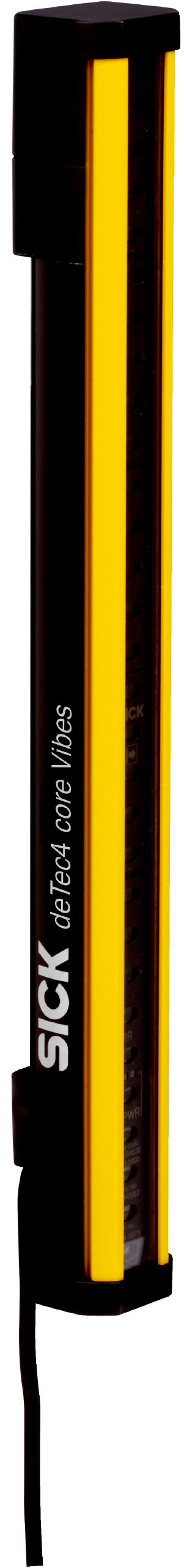

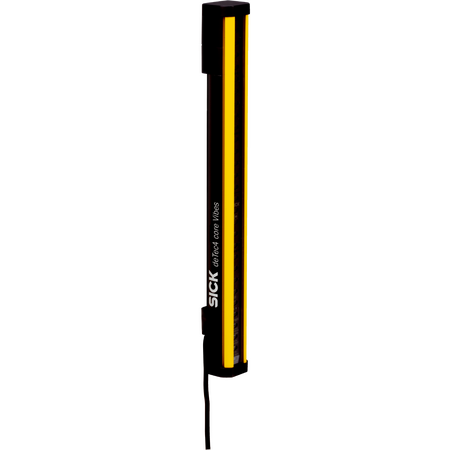

C4C-SV16530C10000 | Safety light curtains
The SICK C4C-SV16530C10000 deTec4 Core Vibes safety light curtain sender is designed for machines with strong shock or vibration loads, providing high safety integrity with Type 4 protection and SIL 3 certification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SV16530C10000 | Safety light curtains
Brand: SICK
SKU: 1110966
Alternatively Known As: Safety light curtain sender, deTec4 Core Vibes light curtain, SICK safety sensor, industrial safety light barrier
Technical Specifications
- Product version: deTec4 Core Vibes
- System part: Sender
- Resolution: 30 mm
- Scanning range: 6 m
- Protective field height: 1,650 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.25 W
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light wavelength: 850 nm near-infrared (NIR), invisible
- Dimensions (H x L x W): 1650mm x 40mm x 50mm
- Weight: 3.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance level PL e
- Resolution of 30 mm and scanning range of 6 m
- Protective field height of 1,650 mm with no blind zones
- Optical synchronization for reliable operation
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High vibration and shock resistance (5-150 Hz, 3.5 mm / 1 g; 15 g / 6 ms)
- Wide ambient operating temperature range from -30 °C to +55 °C
- Ingress protection rating IP65 and IP67
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and compliance with relevant safety standards.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 1.25 W reduces energy usage
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C4C-SV16530C10000 safety light curtain sender is available for immediate purchase, ideal for industrial machinery requiring high safety standards under strong shock or vibration conditions.
