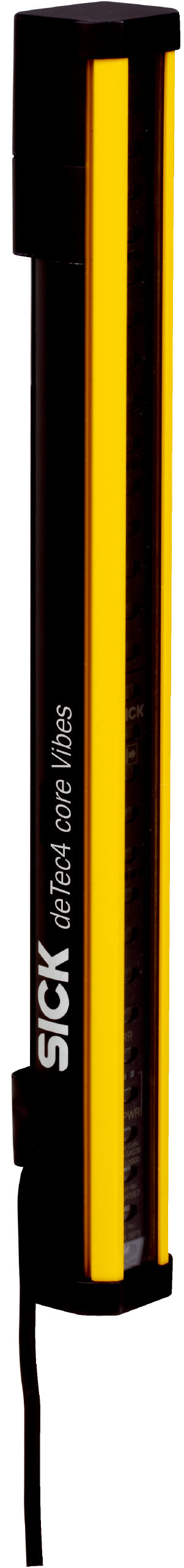

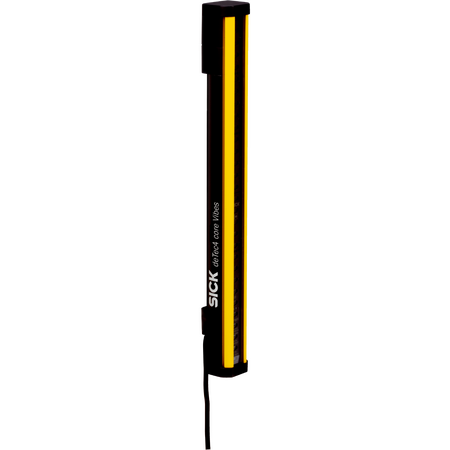

C4C-SV18030C10000 | Safety light curtains
The SICK C4C-SV18030C10000 Safety Light Curtain Sender is designed for machines with strong shock or vibration loads, providing high safety integrity with Type 4 protection and SIL 3 certification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SV18030C10000 | Safety light curtains
Brand: SICK
SKU: 1108491
Alternatively Known As: Safety light curtain sender, Safety light barrier, Machine safety sensor, Optical safety curtain
Technical Specifications
- Product version: deTec4 Core Vibes
- Resolution: 30 mm
- Scanning range: 6 m
- Protective field height: 1800 mm
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 1.3 W
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (850 nm), invisible
- Dimensions (H x L x W): 1800mm x 30mm x 40mm
- Weight: 3.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- SIL 3 safety integrity level (IEC 61508)
- Category 4 and Performance Level e (ISO 13849-1)
- 30 mm resolution with 6 m scanning range
- Protective field height of 1800 mm with no blind zones
- Optical synchronization for reliable operation
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High vibration and shock resistance
- Wide ambient operating temperature range from -30°C to +55°C
- Ingress protection rating IP65 and IP67
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with machine safety standards and electrical connections to ensure compliance and safety.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 1.3 W reduces energy usage
- Complies with RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4C-SV18030C10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial machine safety applications requiring high reliability under vibration and shock.
