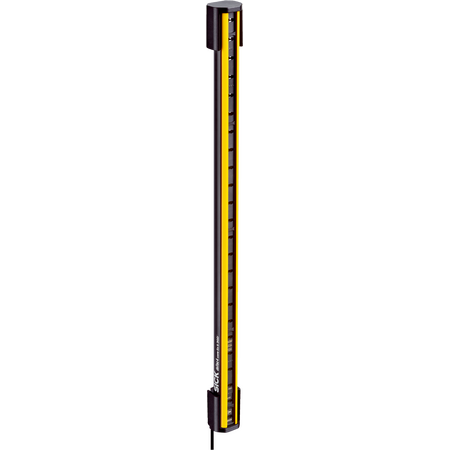

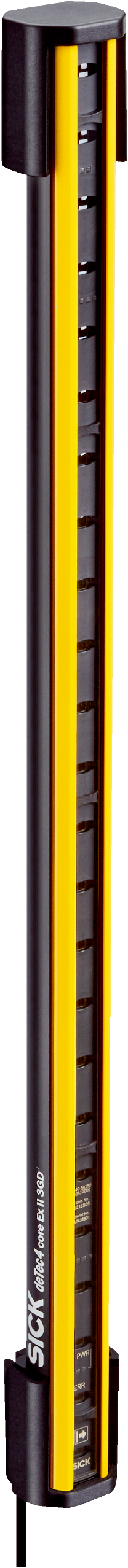

C4C-SX03010A10000 | Safety light curtains
The SICK C4C-SX03010A10000 safety light curtain is designed for use in explosive areas, providing high safety integrity with SIL 3 and Category 4 compliance. It features a 10 m scanning range and robust IP65/IP67 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SX03010A10000 | Safety light curtains
Brand: SICK
SKU: 1220313
Alternatively Known As: Safety light curtain, Explosion-proof light curtain, Industrial safety sensor, Machine safety curtain
Technical Specifications
- Product version: deTec4 Core Ex II 3GD
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- System part: Sender
- Compatible receiver: 1220326
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 300 mm
- No blind zones: Yes
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 0.96 W
- Enclosure rating: IP65/IP67
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light wavelength: 850 nm near-infrared
- Dimensions (H x L x W): 300mm x 1000mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain compliant with IEC 61496-1
- SIL 3 safety integrity level (IEC 61508)
- Category 4 and Performance Level e (ISO 13849-1)
- 14 mm resolution with 10 m scanning range
- Protective field height of 300 mm with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Robust aluminum extruded profile housing
- LED display elements for status indication
- Protection class III and power consumption of 0.96 W DC
- IP65 and IP67 rated enclosure for harsh environments
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with safety light curtains and explosive area requirements to ensure compliance and safety.
Applications
- Industrial safety in explosive environments
- Machine safeguarding in hazardous zones
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-SX03010A10000 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
