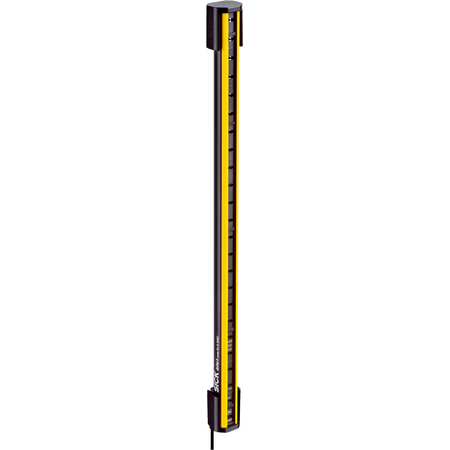

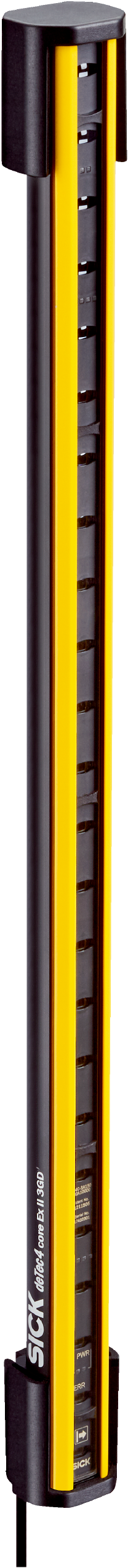

C4C-SX12010A10000 | Safety light curtains
The SICK C4C-SX12010A10000 is a Type 4 safety light curtain sender designed for explosive areas, offering high safety integrity with SIL 3 and PL e ratings, featuring optical synchronization and robust IP65/IP67 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-SX12010A10000 | Safety light curtains
Brand: SICK
SKU: 1220319
Alternatively Known As: Safety light curtain sender, Explosion-proof safety light barrier, Industrial safety sensor, deTec4 Core Ex II 3GD sender
Technical Specifications
- Product version: deTec4 Core Ex II 3GD
- Application: Explosive areas
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- System part: Sender
- Compatible receiver: 1220332
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,200 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.68 W
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light wavelength: 850 nm near-infrared (NIR), invisible
- Dimensions (H x L x W): 1200mm x 40mm x 40mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety ratings
- Optical synchronization with compatible receiver 1220332
- No blind zones with 14 mm resolution and 1,200 mm protective field height
- Automatic calibration of protective field width
- Robust aluminum extruded profile housing with IP65/IP67 protection
- LED display elements for status indication
- Designed for use in explosive gas and dust atmospheres (ATEX certified)
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtains and explosive area requirements, following all relevant safety standards and manufacturer instructions.
Applications
- Industrial safety in explosive environments
- Machine safeguarding in hazardous zones
- Automation systems requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption (1.68 W typical)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-SX12010A10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications in explosive environments.
