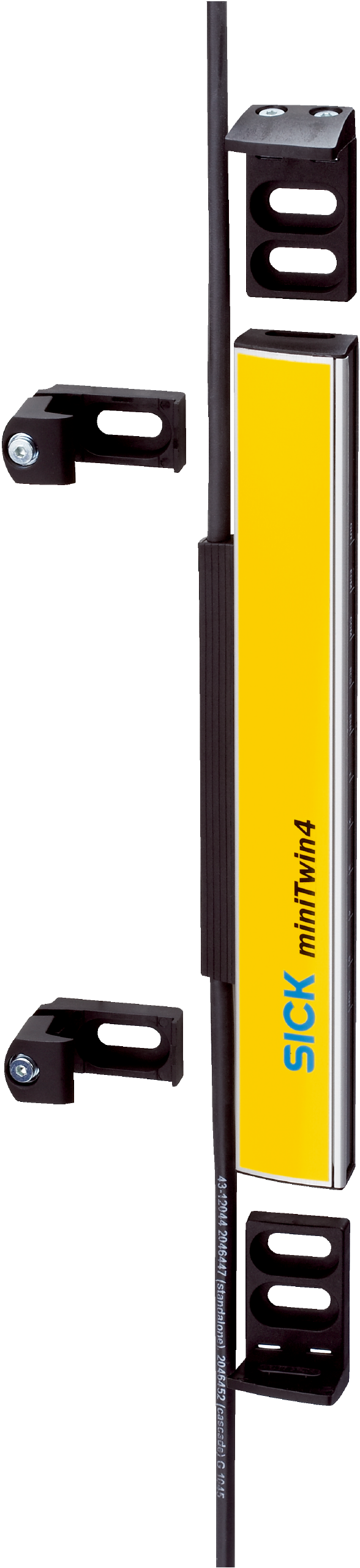

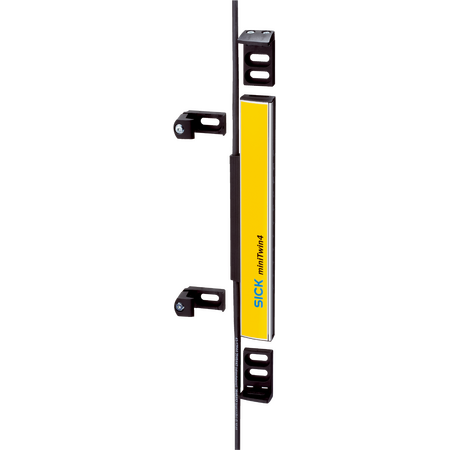

C4MT-03014ABB04DE0 | Safety light curtains
The SICK C4MT-03014ABB04DE0 Safety Light Curtains provide high-performance, reliable safety solutions for industrial automation with a 14 mm resolution and up to 5 m scanning range, ensuring personnel protection and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-03014ABB04DE0 | Safety light curtains
Brand: SICK
SKU: 1207118
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial safety light barrier, machine safety light curtain
Technical Specifications
- Dimensions (H x L x W): 32mm x 350mm x 15mm
- Weight: 0.115 kg
Key Features
- Twin-Stick system part
- MiniTwin4 host for 2- or 3-device cascade and middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution of 14 mm
- Scanning range minimum 0 m to 4 m, typical 0 m to 5 m
- Protective field height of 300 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- System connection via Male connector M12, 5-pin with 350 mm cable
- Extension connection via Female connector M12, 5-pin with 350 mm cable
- Hard wired configuration method
- LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- Output signal switching devices (OSSDs) with PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing cross-section 15 mm x 32 mm made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65 (EN 60529)
- Operating temperature range -20 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Vibration resistance 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance 15 g / 6 ms
- Wavelength 850 nm
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing reduces material waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4MT-03014ABB04DE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety applications requiring reliable personnel protection.
