C4MT-03034ABB03DB0 | Safety light curtains

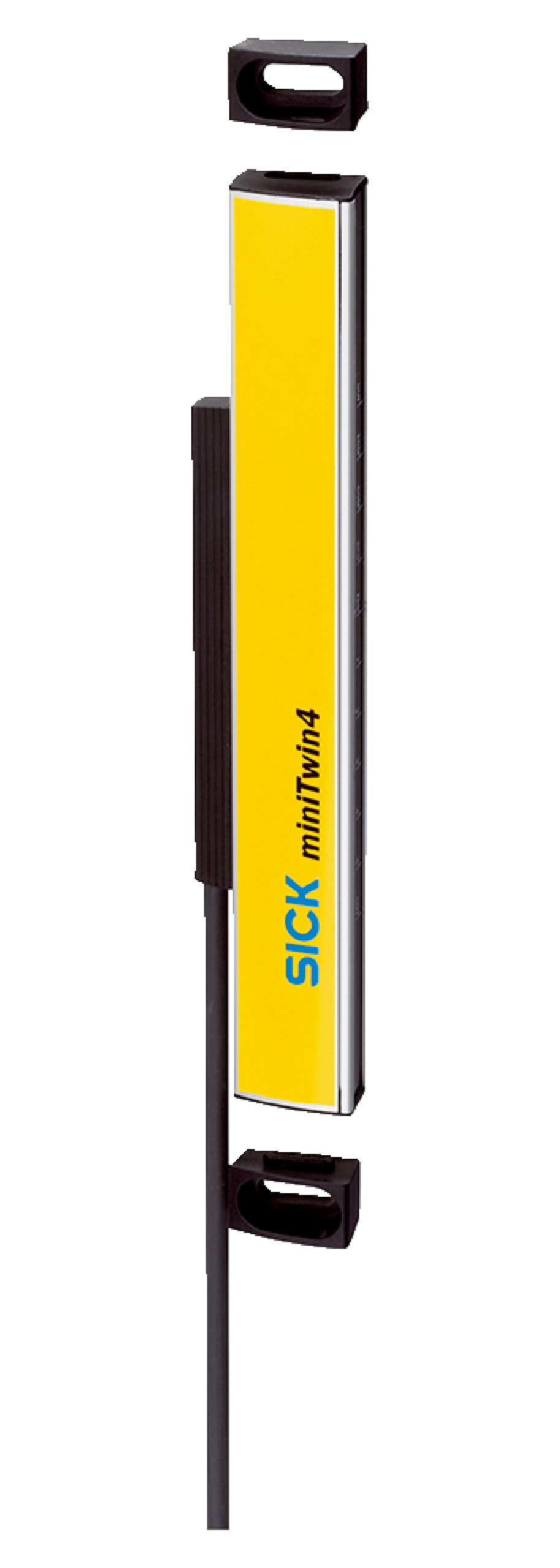

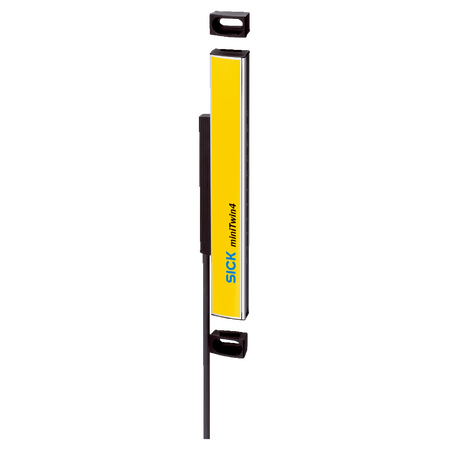

The SICK C4MT-03034ABB03DB0 Safety Light Curtain is a Type 4 safety device designed for industrial applications, providing reliable personnel protection with high safety integrity and robust environmental resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-03034ABB03DB0 | Safety light curtains
Brand: SICK
SKU: 1207337
Alternatively Known As: Safety light curtain, industrial safety curtain, machine safety sensor, light barrier safety device
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as a standalone device
- Mounting system type: O-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 300 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- System connection: Male connector M12, 5-pin with 350 mm cable
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10 %
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage LOW: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section (incl. system connection): 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15 % to 95 %, Non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 32mm x 3000mm x 15mm
- Weight: 0.115 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- Safety integrity level SIL 3 and Performance level PL e
- Resolution of 34 mm with protective field height of 300 mm
- Scanning range from 0 m to 5 m typical
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM) included
- Automatic beam coding
- IP65 rated enclosure for robust protection
- Operating temperature range from -20 °C to +55 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Durable aluminum alloy housing promotes long product life and reduces waste
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK C4MT-03034ABB03DB0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity personnel protection.
