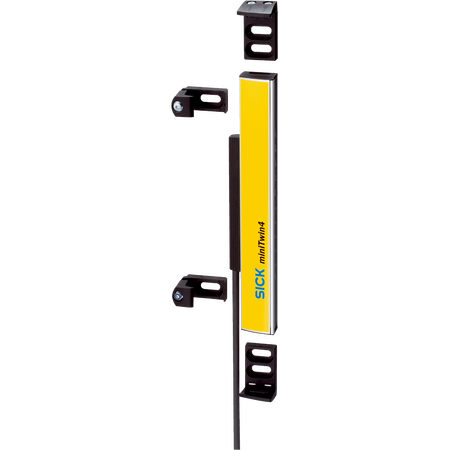

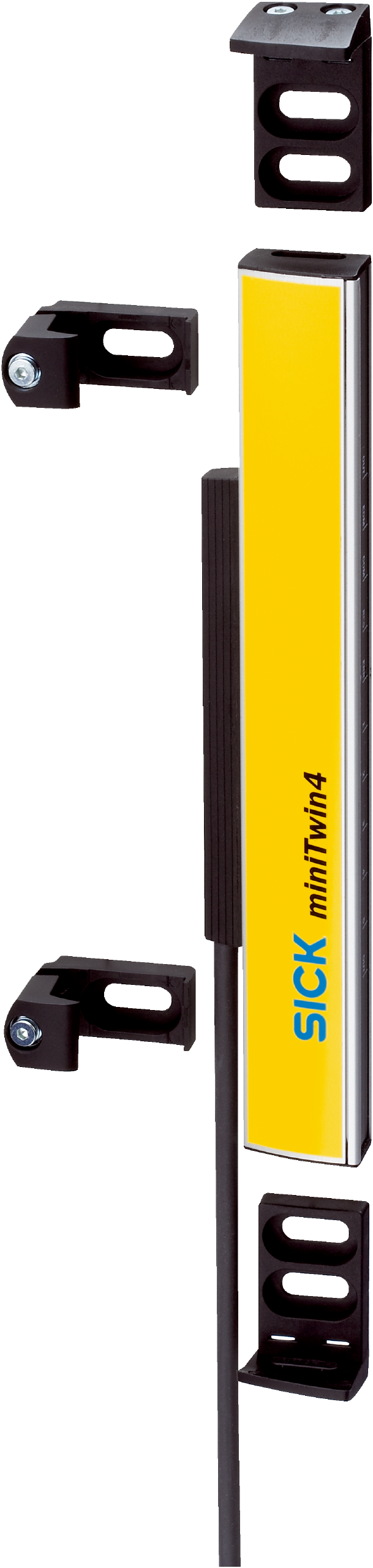

C4MT-06024ABB03FE0 | Safety light curtains
The SICK C4MT-06024ABB03FE0 Safety Light Curtain is a high-performance Type 4 safety device designed for industrial applications, providing reliable personnel protection with fast response times and robust environmental resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-06024ABB03FE0 | Safety light curtains
Brand: SICK
SKU: 1207231
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial light barrier, machine safety curtain
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 600 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Restart interlock and external device monitoring included
- System connection: Male connector M12, 5-pin, 700 mm cable length
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 600mm x 32mm x 15mm
- Weight: 0.215 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Twin-Stick system with optical synchronization without separate synchronization
- Protective field height of 600 mm with 24 mm resolution
- Response time ≤ 13 ms
- Automatic beam coding and restart interlock
- LED display elements for status indication
- IP65 rated enclosure for robust environmental protection
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing plants and automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum alloy housing promotes long product life and reduces waste
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK C4MT-06024ABB03FE0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance with safety standards.
