C4MT-06624ABB03FE0 | Safety light curtains

BRAND: SICK
SKU: 1207232
$3,468.80 List price: $4,360.00
+ −
30 Days Return Delivery Options

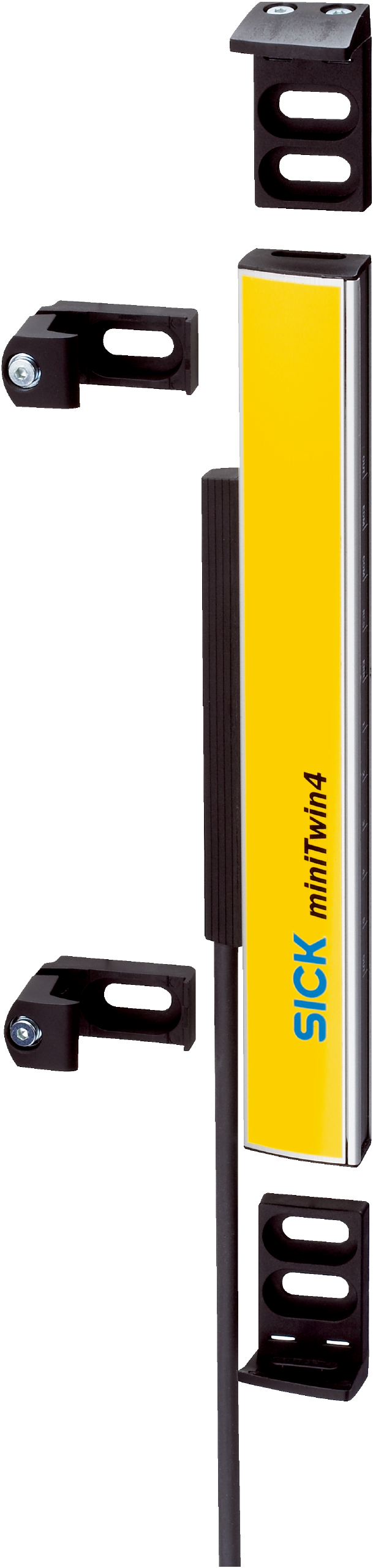

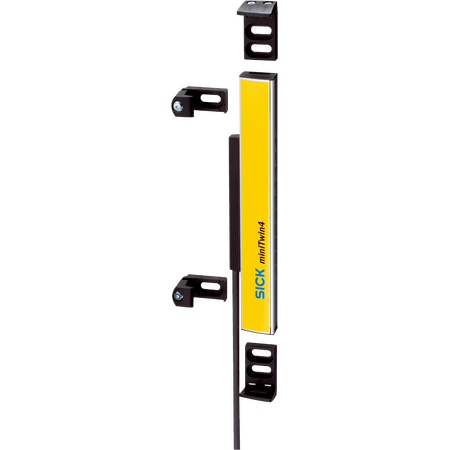

The SICK C4MT-06624ABB03FE0 Safety Light Curtain is a Type 4 safety device designed for industrial applications, offering high safety integrity with SIL 3 and PL e ratings, featuring a 660 mm protective field height and robust IP65 aluminum housing.

Product Name/Title: C4MT-06624ABB03FE0 | Safety light curtains

Brand: SICK

SKU: 1207232

Alternatively Known As: Safety light curtain, industrial safety sensor, presence detection curtain, machine guarding light curtain

Technical Specifications
  • Dimensions (H x L x W): 660mm x 32mm x 15mm
  • Weight: 0.235 kg
Key Features
  • Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
  • Twin-Stick system with 24 mm resolution and 660 mm protective field height
  • Scanning range from 0 m to 5 m typical
  • Optical synchronization without separate synchronization device
  • Restart interlock and external device monitoring (EDM) functions
  • PNP semiconductor output signals with short-circuit and cross-circuit monitoring
  • LED display elements for status indication
  • Robust aluminum alloy housing with IP65 enclosure rating
  • Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
  • Industrial safety guarding for machinery
  • Automation systems requiring presence detection
  • Safety monitoring in manufacturing and processing plants
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable aluminum housing reduces material waste and extends product life
  • Low power consumption design (≤ 3 A) minimizes energy use
  • Complies with China RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK C4MT-06624ABB03FE0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
