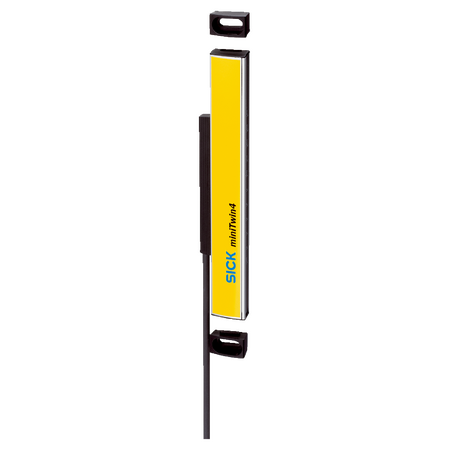

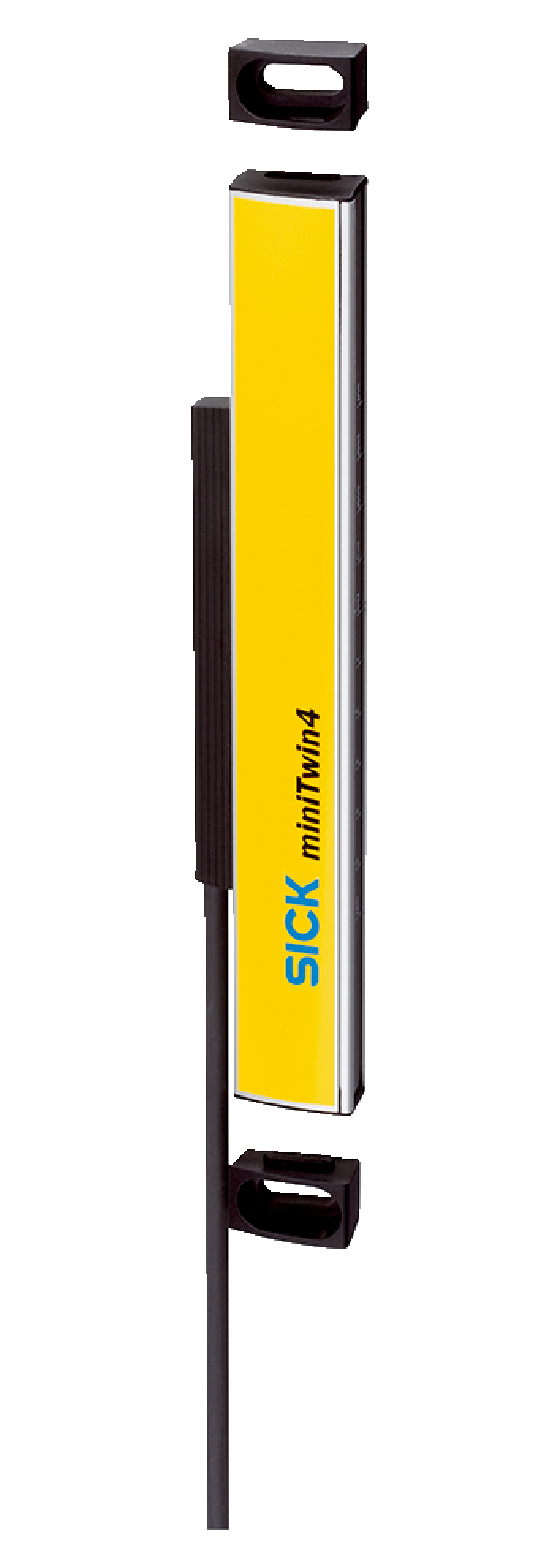

C4MT-07234ABB03FB0 | Safety light curtains
The SICK C4MT-07234ABB03FB0 safety light curtain is a Type 4 twin-stick device designed for industrial safety applications, providing high resolution and fast response time with robust aluminum housing and IP65 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-07234ABB03FB0 | Safety light curtains
Brand: SICK
SKU: 1207344
Alternatively Known As: Safety light curtain, Twin-Stick safety sensor, Industrial safety light barrier, SICK safety sensor
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as a standalone device
- Mounting system type: O-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 720 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Restart interlock and external device monitoring (EDM) supported
- System connection: Male connector M12, 5-pin, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 720mm x 32mm x 15mm
- Weight: 0.255 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Twin-Stick system with optical synchronization without separate synchronization
- Protective field height of 720 mm with 34 mm resolution
- Response time ≤ 13 ms
- Automatic beam coding and restart interlock
- Male connector M12, 5-pin system connection with 700 mm cable length
- Housing made of aluminum alloy ALMGSI 0.5 with IP65 enclosure rating
- Operating temperature range from -20 °C to +55 °C
- Short-circuit protected PNP semiconductor output signal switching devices
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant occupational health and safety standards.
Applications
- Industrial safety for machinery and automation systems
- Protection of personnel in hazardous areas
- Use in manufacturing plants and automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable aluminum housing reduces material waste and extends product life
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK C4MT-07234ABB03FB0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
