C4MT-07824ABB04FE0 | Safety light curtains

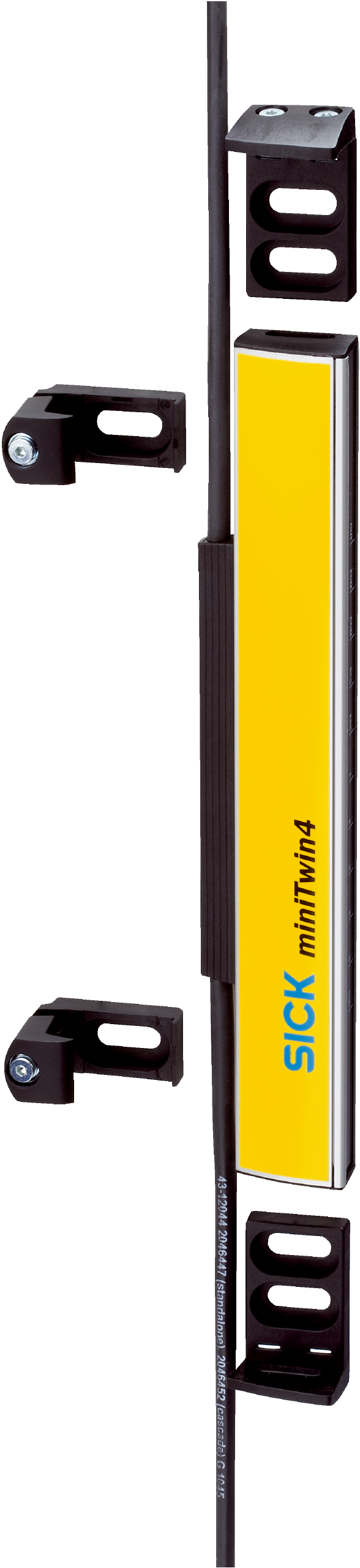

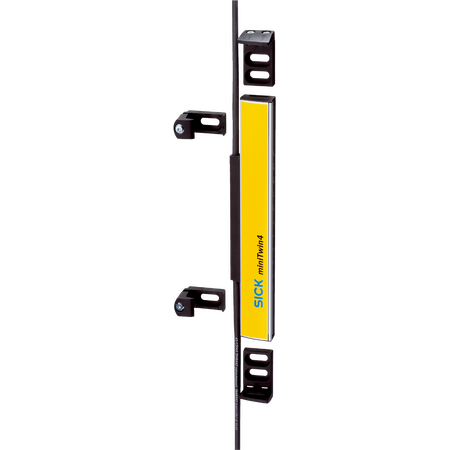

The SICK C4MT-07824ABB04FE0 Safety Light Curtain provides reliable Type 4 safety protection with a 780 mm protective field height and a scanning range up to 5 meters, ideal for industrial safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-07824ABB04FE0 | Safety light curtains
Brand: SICK
SKU: 1207292
Alternatively Known As: Safety light curtain, industrial safety sensor, machine safety light barrier, protective light curtain
Technical Specifications
- Dimensions (H x L x W): 780mm x 32mm x 15mm
- Weight: 0.28 kg
Key Features
- Twin-Stick system part
- MiniTwin4 host for 2- or 3-device cascade and middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution of 24 mm
- Scanning range typical 0 m to 5 m
- Protective field height of 780 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male and female M12 5-pin connectors with 700 mm cable length
- Hard wired configuration with LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signals, short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65 (EN 60529)
- Operating temperature range -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Low power consumption enhances energy efficiency
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4MT-07824ABB04FE0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications.
