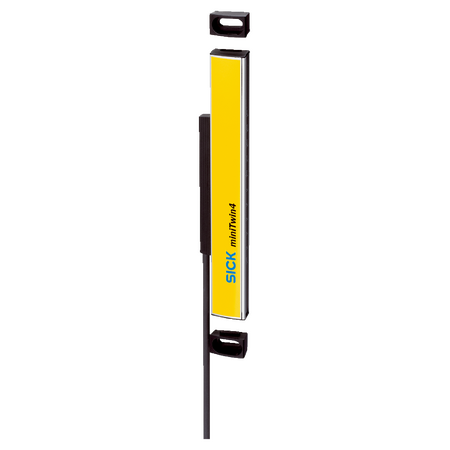

C4MT-10834ABB03FB0 | Safety light curtains
The SICK C4MT-10834ABB03FB0 Safety Light Curtain is a high-performance Type 4 safety device designed for industrial applications, providing reliable personnel protection with fast response and robust construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-10834ABB03FB0 | Safety light curtains
Brand: SICK
SKU: 1207350
Alternatively Known As: Safety light curtain, industrial safety sensor, machine safety light barrier, SICK safety sensor
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 as a standalone device
- Mounting system type: O-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 1080 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Restart interlock and external device monitoring included
- System connection: Male connector M12, 5-pin, 700 mm cable
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected
- Housing material: Aluminum alloy ALMGSI 0.5
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20°C to +55°C
- Storage temperature: -25°C to +70°C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 1080mm x 32mm x 15mm
- Weight: 0.38 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Twin-Stick system with optical synchronization
- Protective field height of 1080 mm
- Response time ≤ 13 ms
- Automatic beam coding and restart interlock
- LED display elements for status indication
- IP65 rated enclosure for harsh environments
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing reduces material waste
- Long service life minimizes replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK C4MT-10834ABB03FB0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
