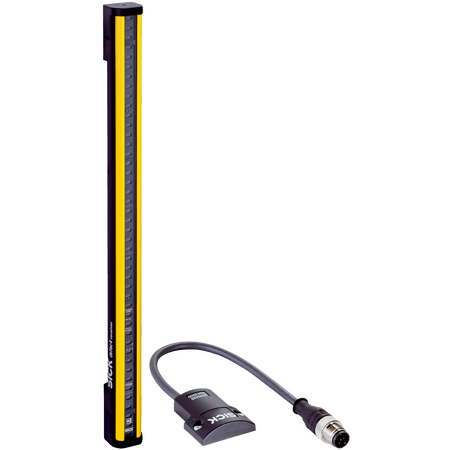

C4P-EA03031CA0 | Safety light curtains
The SICK C4P-EA03031CA0 Safety Light Curtain Receiver is designed for industrial safety applications, providing high resolution, fast response, and robust protection in normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EA03031CA0 | Safety light curtains
Brand: SICK
SKU: 1109160
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, deTec4 safety light curtain
Technical Specifications
- Product version: deTec4
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 300 mm
- Response time: 9 ms (Uncoded), 12 ms (coded)
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 15.3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin
- Configuration: DIP switch on system plug
- Display: LEDs with synchronization status
- NFC: Supported
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 3.23 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 500 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 300mm x 1000mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Resolution of 30 mm with a scanning range of 30 m
- Protective field height of 300 mm
- Response time of 9 ms (uncoded) and 12 ms (coded)
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Beam coding and LED display elements
- Near Field Communication (NFC) for configuration
- Plug M12 5-pin system connection
- Housing made of aluminum extruded profile
- IP65 and IP67 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Industrial safety for normal industrial environments
- Machine safeguarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 3.23 W reduces energy usage
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK C4P-EA03031CA0 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance.
