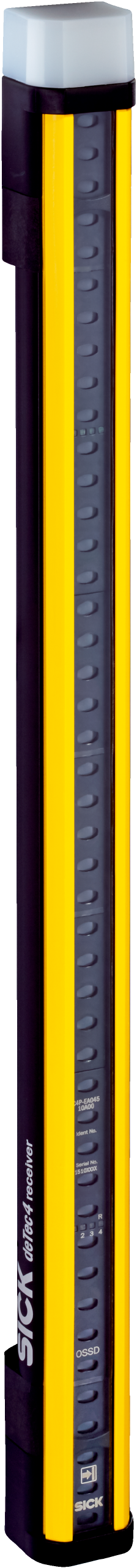

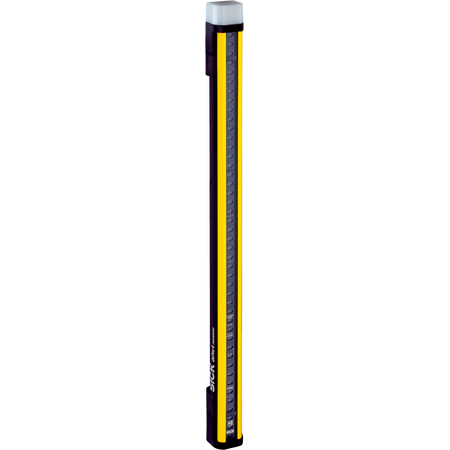

C4P-EA13531D00 | Safety light curtains
The SICK C4P-EA13531D00 safety light curtain receiver offers high-resolution, reliable protection for industrial environments with advanced safety features and robust construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EA13531D00 | Safety light curtains
Brand: SICK
SKU: 1220157
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, machine safety sensor, protective light curtain
Technical Specifications
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- 30 mm resolution with 30 m scanning range and 1,350 mm protective field height
- Optical synchronization with integrated LED end cap
- Automatic calibration of protective field width and beam coding
- Features smart presence detection, 2-signal muting, and differentiation between person and material
- Supports cascading and external device monitoring (EDM)
- Equipped with IO-Link and Near Field Communication (NFC) for configuration and diagnostics
- LED display elements including synchronization status and top LED
- Robust aluminum extruded profile housing with IP65/IP67 protection
- Wide operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring protective light curtains
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Low power consumption at 3.69 W typical reduces energy usage
- High reliability and long mission time (20 years) minimize replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-EA13531D00 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation.
