C4P-EG04531C00 | Safety light curtains

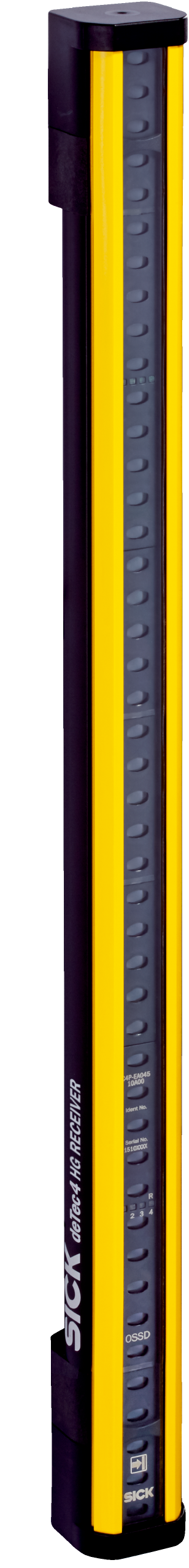

The SICK C4P-EG04531C00 deTec4 HG Safety Light Curtain Receiver offers high-performance industrial safety with Type 4 protection, SIL 3 and PL e certification, ideal for environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

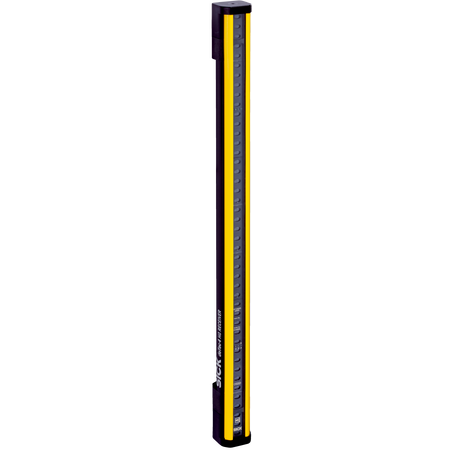

Product Name/Title: C4P-EG04531C00 | Safety light curtains
Brand: SICK
SKU: 1222457
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, deTec4 safety sensor, SICK safety sensor
Technical Specifications
- Product version: deTec4 HG
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 450 mm
- Response time: 10 ms (Uncoded), 14 ms (coded)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guests: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 3.3 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 450mm x 100mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Protective field height of 450 mm with 30 mm resolution
- Scanning range up to 30 m with no blind zones
- Optical synchronization and automatic calibration of protective field width
- Features beam coding, restart interlock, external device monitoring, cascading
- Smart presence detection and 2-signal muting for differentiation between person and material
- LED display elements with application diagnostic output and IO-Link support
- Near Field Communication (NFC) for configuration
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- IP65 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Areas where coolants, lubricants and cleaning agents are used
- Industrial safety for machinery and automated systems
- Protection of personnel in hazardous zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 3.3 W supports energy efficiency
- Robust IP65/IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C4P-EG04531C00 deTec4 HG Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications in environments with coolants and lubricants.
