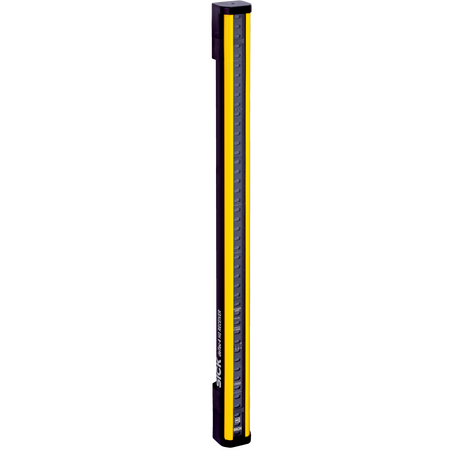

C4P-EG10511C00 | Safety light curtains

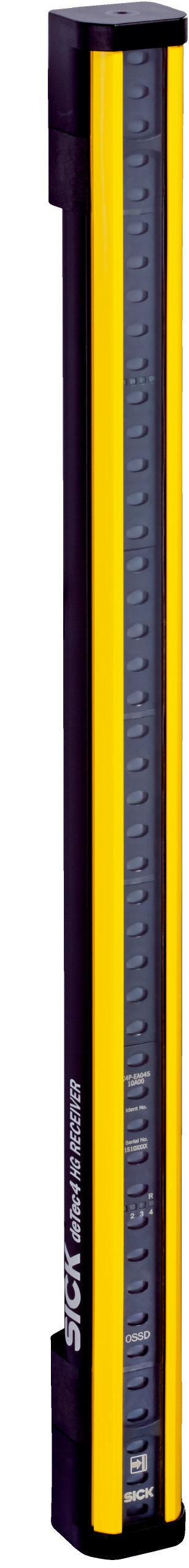

The SICK C4P-EG10511C00 deTec4 HG safety light curtain receiver offers high-performance personnel protection with Type 4 safety, 14 mm resolution, and advanced features for industrial environments involving coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EG10511C00 | Safety light curtains
Brand: SICK
SKU: 1223237
Alternatively Known As: Safety light curtain receiver, deTec4 HG safety sensor, industrial safety light curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance Level: PL e (ISO 13849-1)
- PFHD Single device: 15.3 x 10^-9
- Response Time: 15 ms (Uncoded), 31 ms (coded)
- Protective Field Height: 1,050 mm
- Scanning Range: 20 m
- Resolution: 14 mm
- Supply Voltage: 24 V DC (19.2 V to 28.8 V)
- Power Consumption: 4.26 W
- Output: 2 PNP semiconductors, short-circuit protected
- Protection Class: III (IEC 61140)
- Enclosure Rating: IP65 and IP67 (IEC 60529)
- Operating Temperature: -30 °C to +55 °C
- Storage Temperature: -30 °C to +70 °C
- Vibration Resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock Resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1100mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Resolution of 14 mm with a scanning range of 20 m
- Protective field height of 1,050 mm
- Response time of 15 ms (Uncoded) and 31 ms (coded)
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Beam coding and restart interlock
- External device monitoring (EDM) and cascading capability
- Smart presence detection and reduced resolution options
- Dynamic protective field width during operation
- Differentiation between person and material with 2-signal muting and Smart Box Detection
- LED display elements with synchronization status indication
- Application diagnostic output (ADO), IO-Link, and NFC support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Areas where coolants, lubricants and cleaning agents are used
- Industrial safety for machinery and personnel protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable aluminum housing and chemically prestressed glass front screen for long service life
- Low power consumption of 4.26 W reduces energy usage
- High reliability reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-EG10511C00 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications in environments with coolants and lubricants.
