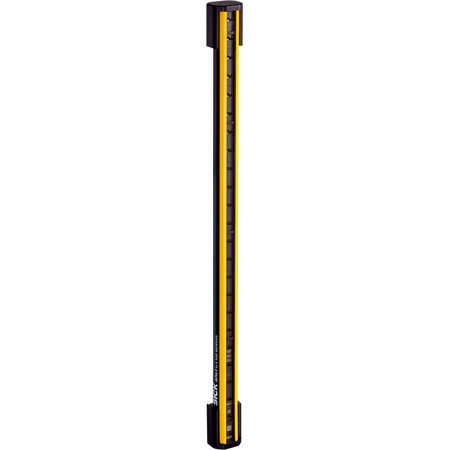

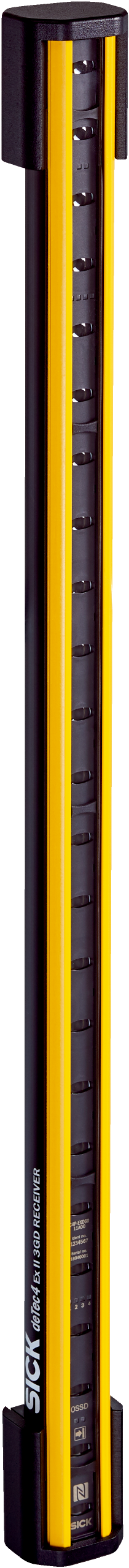

C4P-EX09011C00 | Safety light curtains
The SICK C4P-EX09011C00 safety light curtain is designed for use in explosive areas, providing high safety integrity with Type 4 protection, SIL 3, and PL e ratings. It features advanced functions such as smart presence detection and is ATEX certified.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EX09011C00 | Safety light curtains
Brand: SICK
SKU: 1144367
Alternatively Known As: Safety light curtain, explosion-proof light curtain, industrial safety sensor, machine safety curtain
Technical Specifications
- Product version: deTec4 Ex II 3GD
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 900 mm
- Response time: 14 ms (Uncoded), 28 ms (coded)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 4.09 W typical
- Output: 2 PNP semiconductors, short-circuit protected
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: 0 °C to +55 °C
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 900mm x 100mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety ratings
- Optical synchronization with no blind zones
- Automatic calibration of protective field width
- Beam coding and restart interlock for enhanced safety
- Smart presence detection and differentiation between person and material
- 2-signal muting and Smart Box Detection
- LED display elements and diagnostic outputs including IO-Link and NFC
- ATEX approved for gas and dust explosive atmospheres
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtains and explosion protection standards.
Applications
- Safety monitoring in explosive areas
- Industrial automation requiring high safety integrity
- Machine safeguarding in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Durable aluminum housing ensures long product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK C4P-EX09011C00 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
