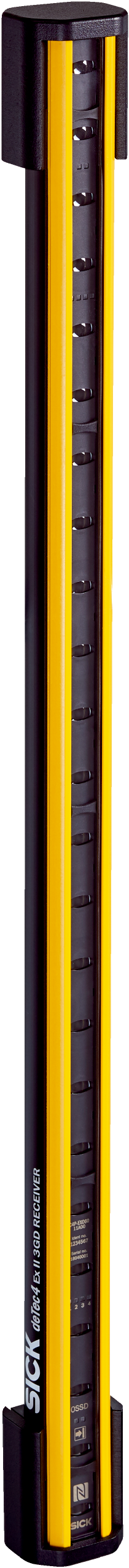

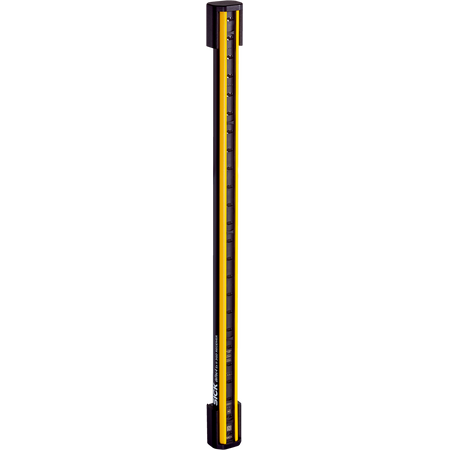

C4P-EX13531C00 | Safety light curtains
The SICK C4P-EX13531C00 safety light curtain is designed for explosive areas, providing high safety integrity with Type 4 protection, SIL 3 certification, and advanced features like optical synchronization and smart presence detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EX13531C00 | Safety light curtains
Brand: SICK
SKU: 1106649
Alternatively Known As: Safety light curtain, explosion-proof light curtain, industrial safety sensor, hazardous area light curtain
Technical Specifications
- Product version: deTec4 Ex II 3GD
- Application: Explosive areas
- Ex-approvals: ATEX gas II 3G Ex ec op is IIC T4 Gc, dust II 3D Ex tc IIIC T135°C Dc
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 1350 mm
- Response time: 12 ms (Uncoded), 21 ms (coded)
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- Power supply: 24 V DC (19.2 V ... 28.8 V)
- Power consumption: 3.69 W
- Output: 2 PNP semiconductor OSSD, short-circuit protected, ≤ 500 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety ratings
- Optical synchronization with no blind zones
- Automatic calibration of protective field width
- Beam coding and restart interlock for enhanced safety
- External device monitoring and cascading capability
- Smart presence detection and 2-signal muting
- LED display elements with diagnostic outputs
- IP65 rated aluminum extruded housing suitable for harsh environments
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with explosion-proof equipment and safety light curtains, following all relevant safety standards and manufacturer instructions.
Applications
- Safety protection in explosive environments
- Industrial automation requiring high safety integrity
- Hazardous area access control and personnel protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste through long product life
- Low power consumption of 3.69 W reduces energy usage
- Certified for use in explosive environments enhancing workplace safety and reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-EX13531C00 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
