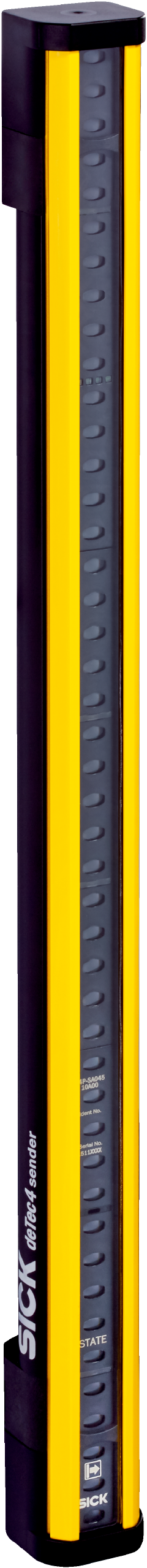

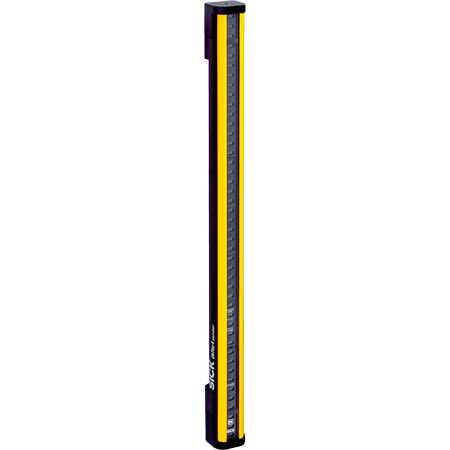

C4P-SA03011A00 | Safety light curtains
The SICK C4P-SA03011A00 deTec4 Safety Light Curtain Sender offers high-performance industrial safety with Type 4 protection, optical synchronization, and integrated laser alignment for reliable personnel protection in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SA03011A00 | Safety light curtains
Brand: SICK
SKU: 1220084
Alternatively Known As: Safety light curtain sender, industrial safety light barrier, SICK safety sensor, deTec4 light curtain
Technical Specifications
- Product version: deTec4
- Application: Normal industrial environment
- System part: Sender
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 300 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in event of fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration method: DIP switch on system plug
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.42 W
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 300mm x 200mm x 30mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- Resolution of 14 mm and scanning range up to 20 m
- Protective field height of 300 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width
- Beam coding and cascading capability
- LED display elements for status indication
- Housing made of aluminum extruded profile
- Protection class III with IP65 and IP67 enclosure rating
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous zones
- Use in normal industrial environments requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 1.42 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-SA03011A00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable personnel protection.
