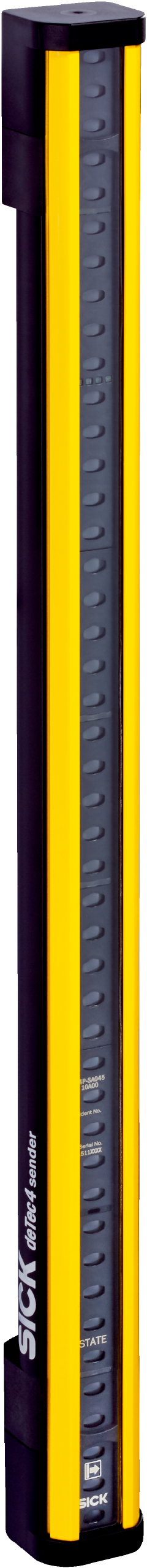

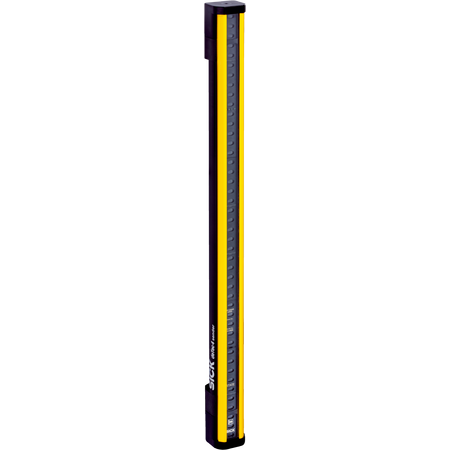

C4P-SA03031A00 | Safety light curtains
The SICK C4P-SA03031A00 deTec4 safety light curtain sender offers high-resolution, long-range protection for industrial environments, ensuring personnel safety with advanced safety integrity levels and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SA03031A00 | Safety light curtains
Brand: SICK
SKU: 1220123
Alternatively Known As: Safety light curtain sender, industrial safety light curtain, deTec4 safety sensor, SICK safety sensor sender
Technical Specifications
- Product version: deTec4
- System part: Sender
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 300 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: Optional M12 female connector, 5-pin
- Configuration method: DIP switch on system plug
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.23 W
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 300mm x 300mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- 30 mm resolution with 30 m scanning range and 300 mm protective field height
- No blind zones with optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width and beam coding
- Cascading capability for extended safety coverage
- LED display elements for status indication
- Housing made of durable aluminum extruded profile
- Protection class III with IP65 and IP67 enclosure rating
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring high safety standards
- Protection of personnel from hazardous machine areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (1.23 W typical)
- Durable aluminum housing reduces material waste and extends product life
- Long mission time of 20 years reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-SA03031A00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance.
