C4P-SA09011A00 | Safety light curtains

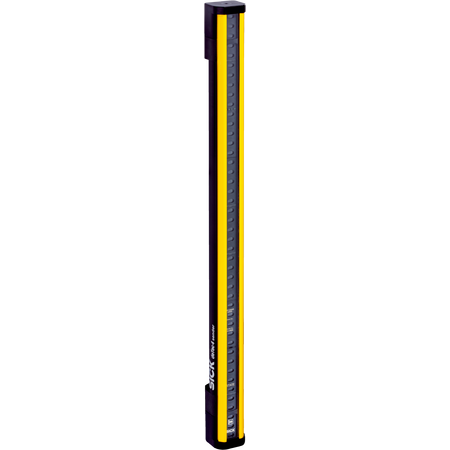

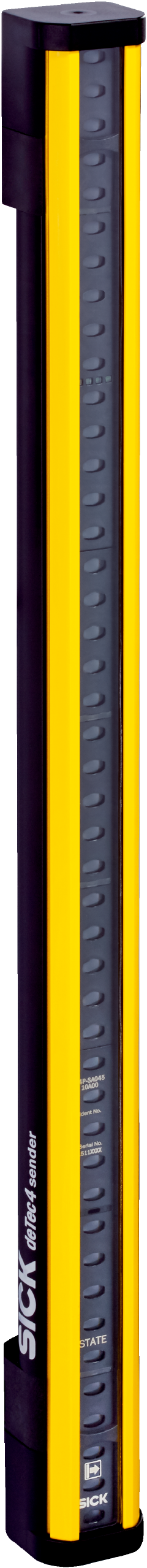

The SICK C4P-SA09011A00 deTec4 Safety Light Curtain Sender offers high-performance industrial safety with Type 4 protection, SIL 3 and PL e certification, ideal for safeguarding personnel in normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SA09011A00 | Safety light curtains
Brand: SICK
SKU: 1220088
Alternatively Known As: Safety light curtain sender, industrial safety light barrier, machine safety sensor, deTec4 light curtain
Technical Specifications
- Product version: deTec4
- System part: Sender
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 900 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration: DIP switch on system plug
- Display: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.77 W
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm visible red light
- Dimensions (H x L x W): 900mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- 14 mm resolution with 900 mm protective field height
- Scanning range up to 20 m with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width and beam coding
- Cascading capability for extended safety coverage
- LED display elements for status indication
- Robust aluminum extruded profile housing with IP65/IP67 rating
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring high safety standards
- Protection of personnel from hazardous machine areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (1.77 W typical)
- Durable aluminum housing reduces material waste and extends product life
- Complies with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-SA09011A00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance.
