C4P-SG03031A00 | Safety light curtains

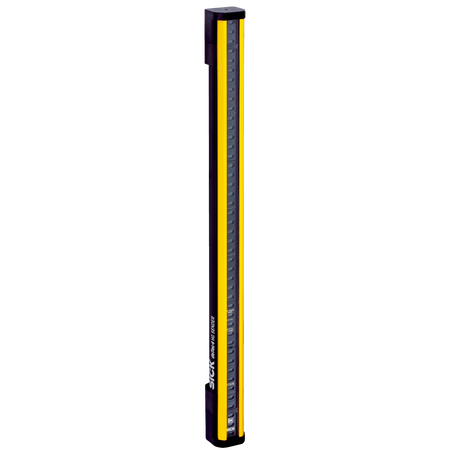

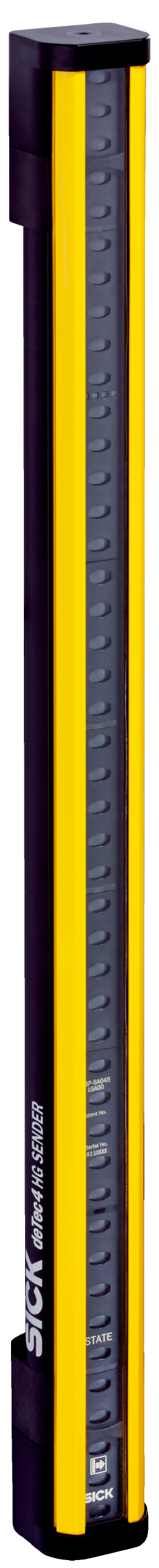

The SICK C4P-SG03031A00 deTec4 HG safety light curtain sender offers high-resolution, long-range protection for industrial environments with exposure to coolants and lubricants, ensuring maximum safety with advanced features and robust construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SG03031A00 | Safety light curtains
Brand: SICK
SKU: 1222445
Alternatively Known As: Safety light curtain sender, industrial safety light curtain, deTec4 HG light curtain, SICK safety sensor
Technical Specifications
- Product version: deTec4 HG
- System part: Sender
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 300 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in event of fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration method: DIP switch on system plug
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.23 W
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 300mm x 1000mm x 40mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- Resolution of 30 mm and scanning range up to 30 m
- Protective field height of 300 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width
- Beam coding and cascading capability
- Smart presence detection
- LED display elements for status indication
- Housing made of aluminum extruded profile with chemically prestressed float glass front screen
- IP65 and IP67 rated enclosure for robust environmental protection
- Operating temperature range from –30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant occupational health and safety standards.
Applications
- Areas where coolants, lubricants and cleaning agents are used
- Industrial safety for machinery and automated systems
- Protection of hazardous zones in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption at 1.23 W typical
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-SG03031A00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications in environments with coolants, lubricants, and cleaning agents.
