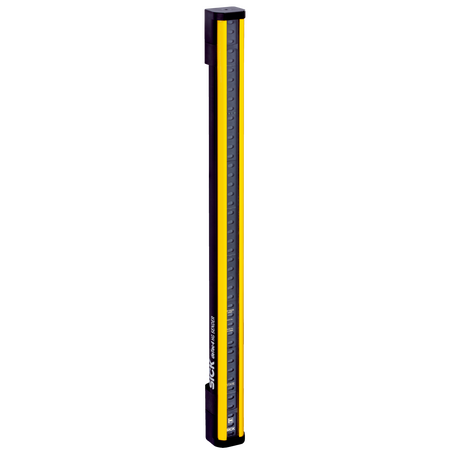

C4P-SG13531A00 | Safety light curtains

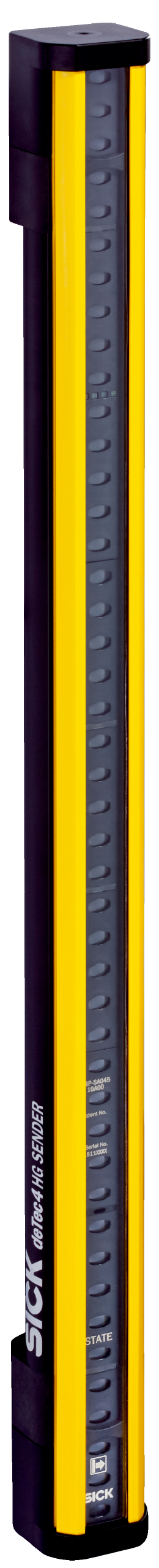

The SICK C4P-SG13531A00 Safety Light Curtain Sender deTec4 HG offers high-performance industrial safety with Type 4 protection, SIL 3 and PL e certification, ideal for environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SG13531A00 | Safety light curtains
Brand: SICK
SKU: 1223140
Alternatively Known As: Safety light curtain sender, industrial safety light curtain, deTec4 HG safety sensor, SICK safety sensor sender
Technical Specifications
- Product version: deTec4 HG
- System part: Sender
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 1,350 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: Optional M12 female connector, 5-pin
- Configuration method: DIP switch on system plug
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.75 W
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 3.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Resolution of 30 mm and scanning range up to 30 m
- Protective field height of 1,350 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width and beam coding
- Smart presence detection and cascading capability
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- IP65 and IP67 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Areas where coolants, lubricants and cleaning agents are used
- Industrial safety for machinery and automated systems
- Protection of personnel in hazardous zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 1.75 W reduces energy usage
- Robust IP65/IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-SG13531A00 Safety Light Curtain Sender deTec4 HG is available for immediate purchase, ideal for industrial safety applications in environments with coolants and lubricants.
