C4P-SG18011A00 | Safety light curtains

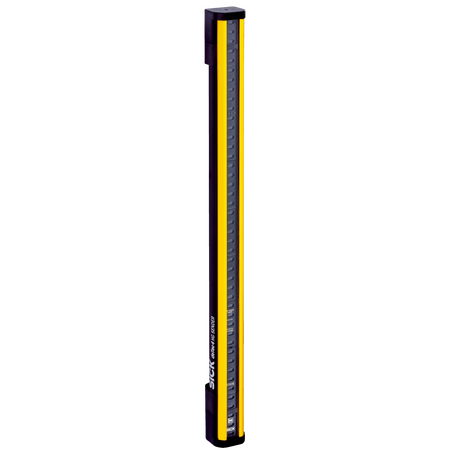

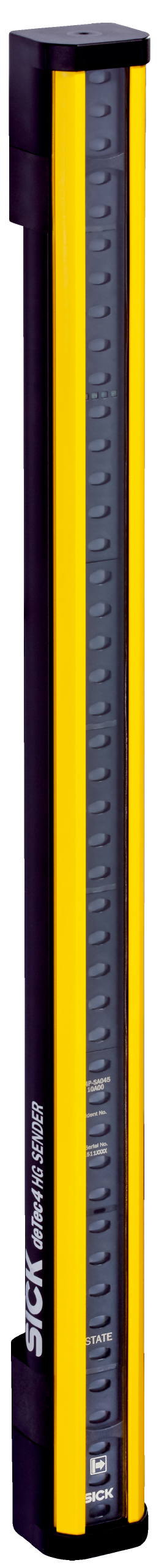

The SICK C4P-SG18011A00 deTec4 HG Safety Light Curtain Sender offers high-performance industrial safety with Type 4 protection, suitable for harsh environments involving coolants and lubricants, featuring a 1,800 mm protective field height and advanced safety integrity levels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SG18011A00 | Safety light curtains
Brand: SICK
SKU: 1222444
Alternatively Known As: Safety light curtain sender, industrial safety light barrier, machine safety sensor, deTec4 safety curtain
Technical Specifications
- Product version: deTec4 HG
- System part: Sender
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 1,800 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD Single device: 15.3 x 10^-9
- PFHD Cascade with one guest: 30.5 x 10^-9
- PFHD Cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in event of fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: Optional M12 female connector, 5-pin
- Configuration method: DIP switch on system plug
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10 %
- Power consumption typical: 2.29 W
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Air humidity: 15 % to 95 %, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 1800mm x 40mm x 50mm
- Weight: 5 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- Resolution of 14 mm and scanning range up to 20 m
- Protective field height of 1,800 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width and beam coding
- Smart presence detection and cascading capability
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from –30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtains and relevant safety standards to ensure proper alignment, configuration, and compliance.
Applications
- Areas where coolants, lubricants and cleaning agents are used
- Industrial safety for machinery and personnel protection
- Automation and manufacturing environments requiring high safety standards
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.29 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-SG18011A00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications in environments with coolants, lubricants, and cleaning agents.
