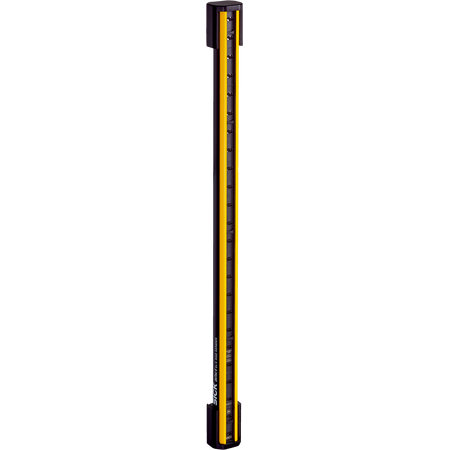

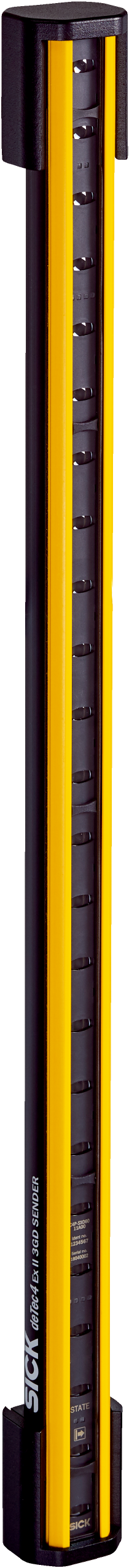

C4P-SX09031A00 | Safety light curtains
The SICK C4P-SX09031A00 safety light curtain is designed for explosive areas, providing high safety integrity with Type 4 classification, SIL 3, and PL e ratings. It features a 30 m scanning range and integrated laser alignment for precise machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SX09031A00 | Safety light curtains
Brand: SICK
SKU: 1109390
Alternatively Known As: Safety light curtain, Explosion-proof light curtain, Industrial safety sensor, Machine safeguarding light curtain
Technical Specifications
- Product version: deTec4 Ex II 3GD
- Application: Explosive areas
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- System part: Sender
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 900 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Power supply: 24 V DC (19.2 V ... 28.8 V)
- Power consumption typical: 1.53 W
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 900mm x 100mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e performance levels
- 30 mm resolution with 30 m scanning range and 900 mm protective field height
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width and smart presence detection
- ATEX certified for gas and dust explosive atmospheres
- IP65 rated aluminum extruded housing for robust protection
- LED display elements for status indication
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with hazardous area electrical equipment and safety standards.
Applications
- Industrial safety in explosive environments
- Machine safeguarding in hazardous zones
- Automation safety systems requiring high integrity light curtains
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Low power consumption at 1.53 W typical reduces energy usage
- Long mission time of 20 years supports sustainable operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK C4P-SX09031A00 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
