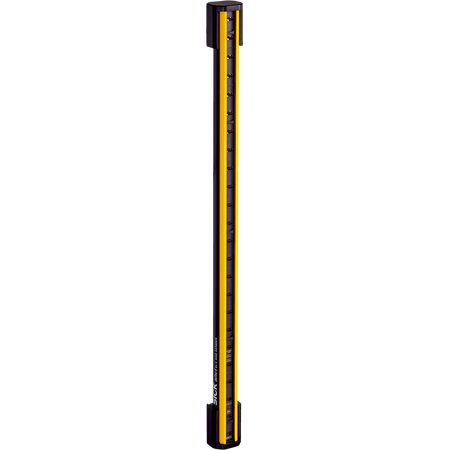

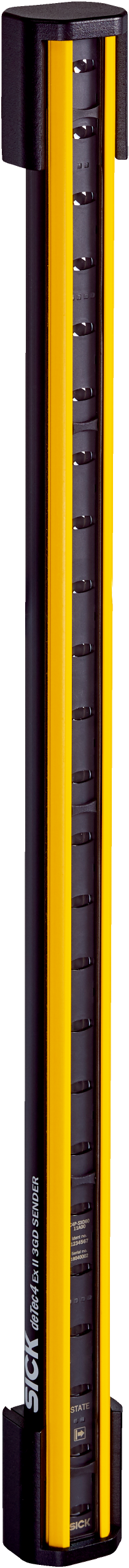

C4P-SX10511A00 | Safety light curtains
The SICK C4P-SX10511A00 safety light curtain is designed for use in explosive areas, providing high safety integrity with Type 4 classification, SIL 3, and PL e ratings. It features optical synchronization, integrated laser alignment, and robust IP65 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SX10511A00 | Safety light curtains
Brand: SICK
SKU: 1109101
Alternatively Known As: Safety light curtain, Explosion-proof light curtain, Industrial safety sensor, Machine safeguarding light curtain
Technical Specifications
- Product version: deTec4 Ex II 3GD
- Application: Explosive areas
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- System part: Sender
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 1,050 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single system: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guests: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration: DIP switch on system plug
- Display: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 1.85 W typical
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: 0°C to +55°C
- Storage temperature: -30°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Light type: Visible red light
- Dimensions (H x L x W): 1050mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e performance levels
- Optical synchronization with no blind zones
- Integrated laser alignment aid for precise installation
- Automatic calibration of protective field width
- Beam coding and cascading capabilities
- Protection class III with IP65 enclosure rating
- Operating temperature range from 0°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with hazardous area equipment and compliant with ATEX and IECEx standards.
Applications
- Industrial safety in explosive environments
- Machine safeguarding in hazardous zones
- Automation safety systems requiring high integrity light curtains
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-SX10511A00 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
