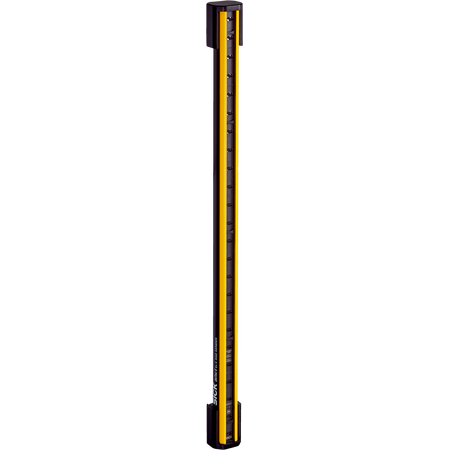

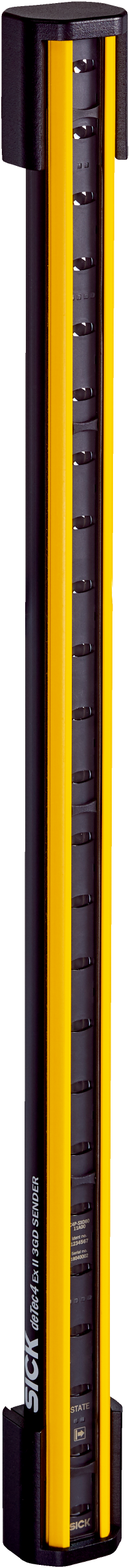

C4P-SX18031A00 | Safety light curtains
The SICK C4P-SX18031A00 safety light curtain is designed for use in explosive areas, providing high safety integrity with Type 4 protection, SIL 3 rating, and advanced features like automatic calibration and smart presence detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SX18031A00 | Safety light curtains
Brand: SICK
SKU: 1107868
Alternatively Known As: Safety light curtain, Explosion-proof light curtain, Industrial safety sensor, Optical safety barrier
Technical Specifications
- Dimensions (H x L x W): 1800mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain with IEC 61496-1 compliance
- SIL 3 safety integrity level (IEC 61508)
- Category 4 and Performance Level e (ISO 13849-1)
- 30 mm resolution with 30 m scanning range
- Protective field height of 1800 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width
- Beam coding and cascading capabilities
- Smart presence detection
- LED display elements for status indication
- Robust aluminum extruded profile housing
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range (0°C to +55°C)
Professional Installation Requirements
- Installation by qualified personnel trained in safety light curtain systems and compliance with relevant safety standards is required.
Applications
- Safety monitoring in explosive areas
- Industrial automation requiring high safety integrity
- Machine safeguarding with optical protective fields
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Low power consumption (1.97 W typical) reduces energy use
- Long mission time of 20 years supports sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-SX18031A00 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
