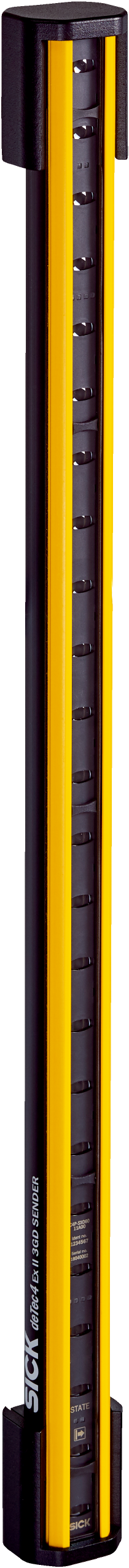

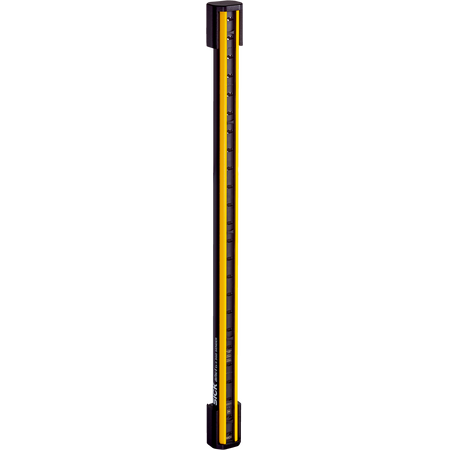

C4P-SX21031A00 | Safety light curtains
The SICK C4P-SX21031A00 safety light curtain is designed for use in explosive areas, providing high safety integrity with Type 4 protection, SIL 3 certification, and advanced features like optical synchronization and laser alignment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SX21031A00 | Safety light curtains
Brand: SICK
SKU: 1131070
Alternatively Known As: Safety light curtain, Explosion-proof light curtain, Industrial safety sensor, Machine safety curtain
Technical Specifications
- Product version: deTec4 Ex II 3GD
- Application: Explosive areas
- Ex-approvals: ATEX gas and dust certified
- System part: Sender
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 2100 mm
- No blind zones: Yes
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single system: 15.3 x 10^-9
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 2.12 W
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: 0°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm visible red light
- Dimensions (H x L x W): 2100mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain compliant with IEC 61496-1
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (ISO 13849-1)
- 30 mm resolution with 30 m scanning range
- Protective field height of 2100 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width
- Beam coding and cascading capabilities
- Smart presence detection
- LED display elements for status indication
- Robust aluminum extruded profile housing
- IP65 rated enclosure for dust and water protection
- Operating temperature range 0°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with safety light curtains and explosive area certifications to ensure compliance and safety.
Applications
- Industrial safety in explosive areas
- Machine safeguarding
- Automation systems requiring high safety integrity
- Hazardous environment protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.12 W reduces energy use
- Robust IP65 housing protects against environmental damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-SX21031A00 safety light curtain is available for immediate purchase, ideal for industrial and hazardous area safety applications.
