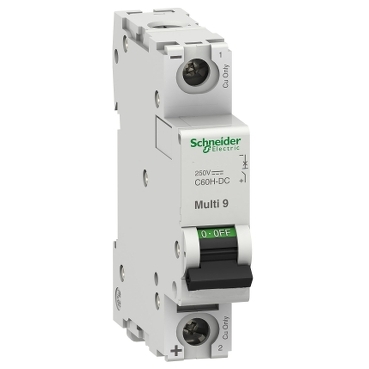

C60H-DC Circuit Breaker | 250VDC | 10A Rated Current | 10kA Breaking Capacity | @Pack of 1 | by Clipsal
The C60H-DC Circuit Breaker is designed for DC applications up to 250VDC, featuring a 10A rated current and a high breaking capacity of 10kA. Ideal for photovoltaic systems and industrial installations, this compact breaker ensures reliable circuit protection with a thermal-magnetic trip unit for overload and short-circuit safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C60H-DC Circuit Breaker | 250VDC | 10A Rated Current | 10kA Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMGN61510
Alternatively Known As: DC Miniature Circuit Breaker, DC MCB, Clipsal DC Breaker, C60H-DC Breaker, 250VDC Circuit Breaker
Technical Specifications
- Rated voltage: 250VDC
- Rated current: 10A
- Breaking capacity: 10kA
- Number of poles: 1P
- Trip unit: Thermal-magnetic
- Mounting: DIN rail
- Operating temperature: -25°C to +70°C
- Standards: IEC/EN 60947-2
- Dimensions (H x L x W): 81mm x 73mm x 18mm
- Weight: 0.12 kg
Key Features
- Specifically designed for direct current (DC) applications up to 250VDC
- High breaking capacity for reliable circuit protection
- Compact modular design for easy installation on DIN rail
- Thermal-magnetic trip unit for overload and short-circuit protection
- Clear ON/OFF indication for operational safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and standards.
Applications
- Photovoltaic (solar) systems
- DC circuits in industrial and commercial installations
- Battery storage systems
- Telecommunications and control panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 5033 – Installation of Photovoltaic (Solar) Systems
Environmental Benefits
- Supports safe integration of renewable energy systems such as solar PV installations
- Enhances electrical safety, reducing risk of fire and equipment damage
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal C60H-DC 250VDC Circuit Breaker (SCHMGN61510) is available for immediate purchase. Ideal for DC protection in solar, industrial, and commercial applications.
